High-performance wireless, providing high-speed, stable wireless network

2.4G/5G dual-band concurrency, 2.4GHz frequency band compatibility, long transmission distance, 5GHz frequency band pure, less interference, dual-band concurrency, to meet the wireless Internet needs of hotels, apartments, dormitories, villas and other dense environments.

Next-generation Wi-Fi 6 wireless technology, stronger performance and better experience
New wireless technologies such as OFDMA, MU-MIMO, TWT, etc., the product performance is stronger and the user experience is better.

Support wireless MESH networking, blind spot signal coverage expansion
is more convenient
Through TP-LINK MESH technology, it is networked with MESH equipment, TL-XAP1802GI-PoE The thin Milan Gold (Fang) Easy Exhibition Edition adds the EZHAN device through the EZHAN button to achieve wireless signal coverage in the signal blind spot area

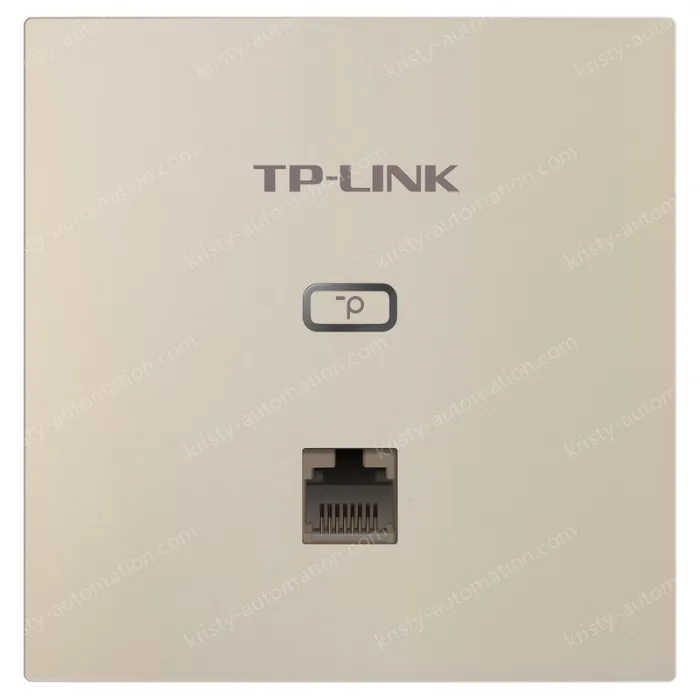

GB 86 panel design, ultra-thin wall, PoE power supply

The national standard 86 panel design can directly replace the original network panel without rewiring, and the wall thickness is only 8mm. It supports 802.3af/at standard PoE network cable power supply, and each AP only needs one network cable, which is not restricted by power supply conditions, and the AP is simple to deploy and easy to construct.

Automatically selects the appropriate channel, and the network is smooth and stable

Based on the wireless channel usage of the AP's environment, the appropriate channel is automatically selected to avoid co-channel interference and ensure wireless stability.Fat AP mode (suitable for small-area wireless coverage): no need to use with TP-LINK wireless controller (AC), AP can work independently, and the wireless network cost is low;
Thin AP (FIT AP) mode (suitable for large-area wireless coverage): It needs to be used with the TP-LINK wireless controller (AC), which can manage all APs through the AC, reducing the difficulty of wireless management.
Automatic RF Tuning Optimizes the Overall Performance of the Wireless Network Automatic RF Tuning
automatically calculates the neighbor relationship between APs in the network, and automatically adjusts the wireless transmission power and channel based on the real-time interference and load conditions of nearby devices, ensuring that the overall wireless network is always in a high-speed, high-performance operation state.
Intelligent roaming technology based on the 802.11kvr protocol is
used to help terminal devices such as mobile phones, pads, and computers automatically connect to the AP with the best signal quality in multi-AP scenarios such as hotels, apartments, dormitories, and villas, effectively improving the user experience of each user and the overall performance of the wireless network.
A variety of unified management methods, support remote management
Support TP-LINK commercial network cloud platform centralized management
Support TP-LINK network management system centralized management
Support TP-LINK business cloud APP remote viewing/management

• Next-generation Wi-Fi 6 (802.11ax) technology
• 11AX 2.4G/5G dual-band concurrent with a wireless rate of up to 1775Mbps
• The national standard 86 ultra-thin shell is beautiful and elegant
• Powered by 802.3af/at standard PoE network cable, no external power supply is required
• Support TP-LINK easy to expand function, simple press of the button, you can provide wireless access to TP-LINK easy exhibition equipment
• Spectrum navigation guides dual-band clients to connect to 5 GHz first, so that the load of the two frequency bands of 2.4 GHz and 5 GHz is more balanced and network performance is ensured
• FIT mode supports automatic RF calibration
• FIT mode supports intelligent roaming
• Support weak signal rejection and prohibit weak signal device access
• Fat and thin are integrated, and different modes can be selected according to different application environments
• It supports centralized management of TP-LINK commercial network cloud platform
• Support TP-LINK business cloud APP remote viewing/management
• Machine size (mm): 86*87.5*33, wall thickness 8mm
• It can provide a simpler, more convenient, and more secure network experience for small and medium-sized businesses

Hardware specifications

Software Specifications (FAT AP Mode)
