External 4 high-power independent FEMs

4 external high-power independent FEMs (1 FEM contains 1 PA and 1 LNA),
even weak signals can be sensitively received, and the signal coverage has no dead ends, meeting the
wireless coverage needs of the family living room and other areas.

High gain long antenna design

The high-gain antenna design has an envelope gain of about 6dBi*, which is more than double the
Wi-Fi signal coverage capability of traditional panel APs.

Gigabit Type-C port, support standard PoE power supply, one cable to solve power
supply and data transmission, and realize Gigabit wired networking.

For home users who have already wired and have an information panel, they only need to use the cable supplied by the product to connect the information panel to the paper AP*,
no need to disassemble the information panel, no need to install tools, and stick it to the wall, which is stable, reliable, convenient and easy to use.

• Protocol Standards

  IEEE802.11a

  IEEE802.11b

  IEEE802.11g

  IEEE802.11n

  IEEE802.11ac

  IEEE802.11ax

  IEEE802.3

  IEEE802.3u

  IEEE802.3ab

• Wireless rate

  2.4GHz frequency band: 574Mbps

  5GHz band: 2402Mbps

• Button

  Reset button

  Easy to expand buttons

• LED

  SYS system indication

• Antenna

  Built-in antenna

• Dimensional weight

  Bare metal size (L×W×H): 210*148*8 mm:

  Packing Size (L×W×H): 317*205.5*50.5mm:

  Bare weight: 0.32 kg (single unit, excluding accessories and packaging)

  Weight: 0.61 kg (single unit, including accessories and packaging)

• Network status

  Wireless setup

  Guest network settings

• App features

  Guest network

  Signal conditioning

  AP isolation

  Wireless device access control

  Wireless timer switch

  Automatic cleanup

• Advanced features

  Wireless setup

  Software Upgrades

  Reboot and factory reset

• Packing accessories

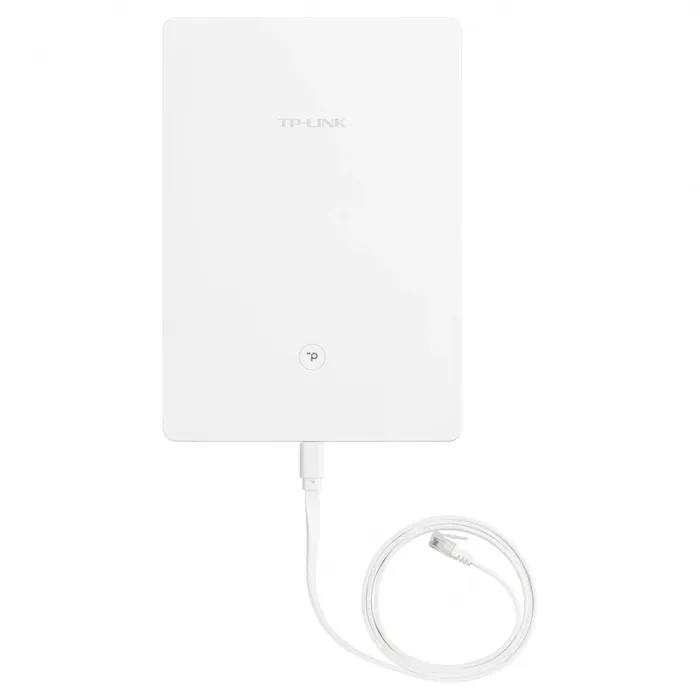

  AX3000 dual-band Gigabit Wi-Fi 6 wireless wall-mounted AP (A5 paper AP)—TL-XAP3000-PoE Turbo Edition 1.0

  Power adapter

  User Manual

  Warranty card

• Use environment

  Operating temperature: 0°C to 40°C

  Storage temperature: -40°C to 70°C

  Operating humidity: 10% to 90% RH non-condensing

  Storage humidity: 5% to 90% RH non-condensing
