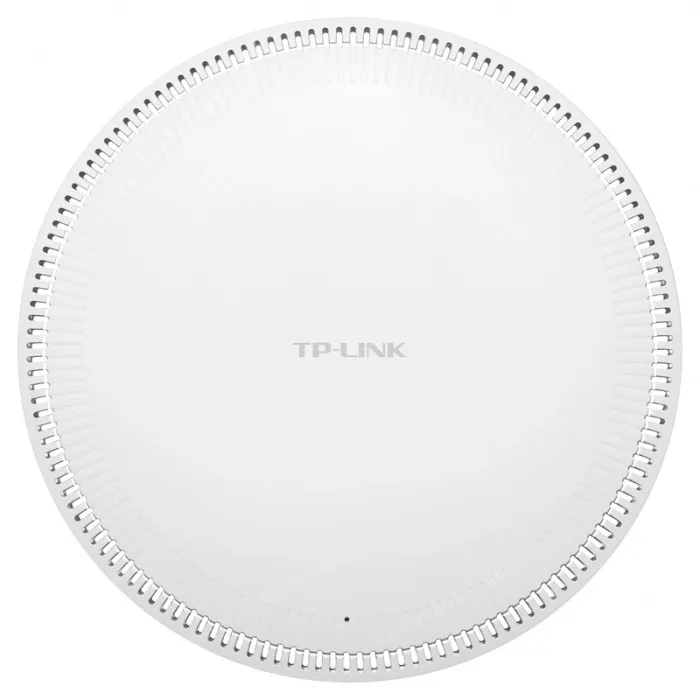

      AX3000 Dual-Band Wi-Fi 6 AP
      • AX3000 Dual-Band Wi-Fi 6 AP
      • AX3000 Dual-Band Wi-Fi 6 AP
      • AX3000 Dual-Band Wi-Fi 6 AP
      • AX3000 Dual-Band Wi-Fi 6 AP

      AX3000 Dual-Band Wi-Fi 6 AP

      ★ ★ ★ ★ ★ 4.9 3 Reviews

      Model: TL-XAP3020FC

      Order No: TL-XAP3020FC

      SKU: 1716201164100002940

      Category: Wireless access point

      Brand: TP-LINK

      Condition: New Sealed Under Guarantee

      Size: 0.00cm, 0.00cm, 43.30mm; Diam:235.00mm

      Weight: 0.49kg

      Product Selection Engineer: Huankanheng

      Leading

      Shipping

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      Are you a Supplier?

      Join Us in Delivering Excellence Worldwide

      Apply to join

      You May Also Like

      Selling List

      Description Reviews
      AX3000 Dual-Band Wi-Fi 6 AP
      • Next-generation Wi-Fi 6 (802.11ax) technology
      • 2.5G optical port, ultra-gigabit fiber networking
      • 11AX dual-band concurrency, the maximum wireless speed can reach 2976Mbps
      • The wireless transmit power is linearly adjustable, and the signal coverage is adjusted according to the demand
      • Professional dual-band antenna to improve the signal quality of the coverage area
      • Spectrum navigation guides dual-band clients to connect to the 5 GHz band preferentially, so that the load of the 2.4 GHz and 5 GHz frequency bands is more balanced and network performance is ensured
      • Easy ceiling mounting, DC power supply and terminal block power supply
      • Concealed port housing, beautiful wiring
      • Fat and thin are integrated, and different working modes are selected in different environments
      • Independent hardware protection circuit, which can automatically restore abnormal APs
      • FIT mode supports automatic radio calibration
      • FIT mode supports intelligent roaming technology
      • Centralized management of TP-LINK commercial network cloud platform is supported
      • Support TP-LINK business cloud APP remote viewing/management
      • It can provide a simpler, more convenient, and more secure network experience for small and medium-sized businesses
      AX3000 Dual-Band Wi-Fi 6 AP

      Products

      Model
      • TL-XAP3020FC Easy Exhibition Edition
      Name
      • AX3000 Dual-Band Wi-Fi 6 Wireless In-Ceiling AP (2.5G Port)

      Hardware specifications

      Bare metal size (L×W×H)
      • Φ235×43.3mm (without mounting parts)
      Package dimensions (L×W×H)
      • 305.5×302.5×65.5mm
      Bare metal weight
      • 0.49kg (single unit, without accessories and packaging)
      The total weight of the whole piece
      • 0.92kg (single unit, including accessories and packaging)
      Interface
      • 1 x 10/100/1000/2500Mbps optical port (SC port)
      • 1 DC power connector and 1 terminal connector
      Optical port parameters
      • Interface type: single-mode SC port
      • Center wavelength: TX: 1310nm RX: 1550nm
      • Average emitted optical power: -9 ~ 1dBm
      • Receiver sensitivity: -14dBm
      • Uplink optical modules can use TP-LINK A-end optical modules, such as TL-SM411SSA-500m and TL-SM311SSA-2KM.
      Light
      • 1 system indicator
      Button
      • 1 RESET button
      • 1 easy-to-expand button
      Power supply
      • Terminal power supply (40V-57V voltage input)
      • DC power supply: 12V
      • Note: This product does not include a power adapter, if you need to use DC power supply, please purchase a 12VDC 1.5A output power adapter and a 5.5mm*2.1mm DC power connector.
      Maximum power consumption
      • The maximum power consumption is 18W
      Standby power consumption
      • Standby power consumption is 4.9W
      Operating temperature
      • 0℃～40℃
      Operating humidity
      • 10%~90%RH non-condensing
      Storage temperature
      • -40℃～70℃
      Store humidity
      • 5%~90%RH non-condensing
      Antenna type
      • Built-in omnidirectional antenna
      Installation:
      • Ceiling mounting
      • Wall mounting

      Software Specifications

      Wireless capability
      • IEEE 802.11a/n/ac/ax, IEEE 802.11b/g/n/ax wireless protocols
      • The maximum wireless speed is 2976Mbps: 574Mbps in the 2.4GHz band and 2402Mbps in the 5GHz band
      • Beamforming
      • Maximum Merge Ratio (MRC)
      • Space-Time Block Code (STBC)
      • Cyclic Time-Delay/Cyclic Shift Diversity (CDD/CSD)
      • LDPC low-density parity
      • Maximum Likelihood Decoding (MLD)
      • Wireless Speed Up Parameter (ShortGI)
      • SSID Broadcast/Hide
      • Number of SSIDs: 2.4G: 7, 5G: 7
      • Chinese SSID, including GBK and UTF-8 encoding
      • Set up the host network and employee network
      • Channel bandwidth settings. 2.4G: 20M/40MHz/Auto; 5G: 20M/40M/80M/160MHz/Automatic
      • Dynamic Channel Selection (DCS)
      • Wi-Fi multi-band in one
      • FIT mode spectrum navigation
      • Transmit power setting: Lv1-Lv10, 1dBm step
      • Isolation between wireless networks and within APs
      • Beacon time slot setting
      • Weak signal device rejection
      • Weak signal devices are not allowed to access
      • IEEE 802.11k/v/r protocol intelligent roaming
      • Automatic RF tuning
      • WMM: Priority-based data processing and forwarding
      • WDS function
      • Limit on the number of wireless clients
      • OFDMA
      • TWT
      Network characteristics
      • Rate and duplex mode auto-negotiation, automatic MDI/MDI-X
      • In FIT mode, CAPWAP interrupts service persistence
      • AC dual-link backup in FIT mode
      • LLDP link discovery
      • VLANs are assigned based on the SSID to which the user accesses
      • Manage VLANs
      • Obtain an IP address by using DHCP
      • Smart DHCP server
      • FAT mode, DHCPv6, IPv6 address access, radiusv6 authentication, and other functions
      • FIT mode: CAPWAPv6, Wportalv6 authentication, DHCPv6 protection, and other functions
      Cybersecurity
      • FIT mode for portal authentication and MAC address authentication
      • WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK, WPA3 encryption
      • Whitelist management of devices that can be accessed
      • The SSID is bound to the Tag VLAN
      • FIT mode broadcast storm suppression
      • DHCP protection in FIT mode
      • ARP protection in FIT mode
      How it's managed
      • FIT mode wireless controller (AC) unified management
      • FAT mode is managed independently of web pages
      • Centralized management of the NMS commercial cloud platform
      • Centralized management of TP-LINK network management system
      System administration
      • Username/password management
      • Syslog viewing/downloading/sending servers
      • Manually set the synchronization time of the active-low NTP server
      • Back up the configuration
      • Import the configuration
      • Factory reset
      • Restart your device
      • Local online upgrade, local firmware upgrade, and cloud upgrade
      • Ping watchdog function, abnormal devices are automatically recovered
      • In the first aid mode, the abnormal device enters the first aid page to upgrade the firmware
