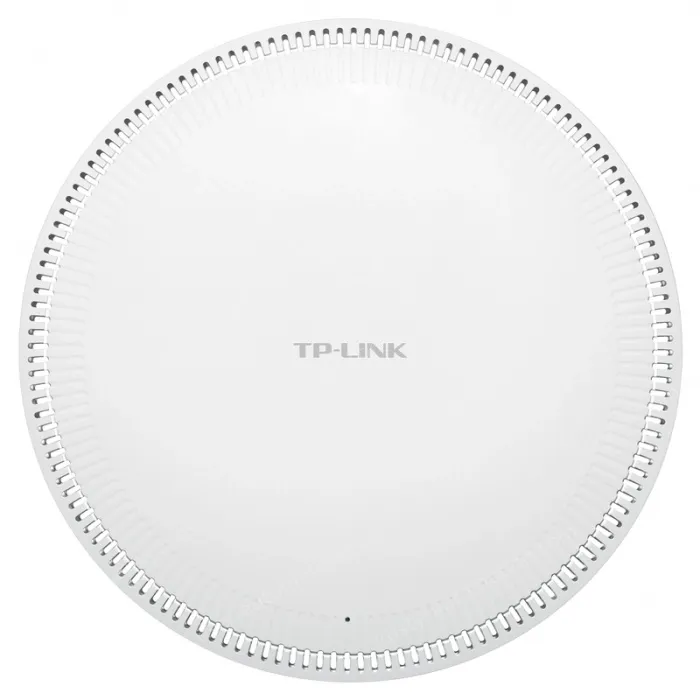

AX3000 dual-band Gigabit Wi-Fi 6 wireless in-ceiling AP

★ ★ ★ ★ ★ 4.9 3 Reviews

Products

Model	TL-NXAP3020-GC2-PD
Name	AX3000 dual-band Gigabit Wi-Fi 6 wireless in-ceiling AP

Hardware specifications

Bare metal size (L×W×H)	Φ235×50mm (without mounting parts)
Package dimensions (L×W×H)	306×304×85mm
Bare metal weight	0.49kg (single unit, without accessories and packaging)
The total weight of the whole piece	0.93kg (single unit, including accessories and packaging)
Interface	1 x 10/100/1000Mbps rate adaptive Ethernet interface 1 DC power connector
Light	1 system indicator
Button	1 RESET button 1 easy-to-expand button
Power supply	IEEE 802.3at standard PoE power supply DC power supply: 12V Note: This product does not include a power adapter, if you need to use DC power supply, please purchase a 12VDC 1.5A output power adapter and a 5.5mm*2.1mm DC power connector.
Maximum power consumption	Standby power consumption: 5.45W Recommended power consumption: 12.74W Full load power consumption: PoE:20.03W DC:19.284W
Operating temperature	0℃～40℃
Operating humidity	10%~95%RH non-condensing
Storage temperature	-40℃～70℃
Store humidity	5%~95%RH non-condensing
Antenna type	Built-in omnidirectional antenna
Installation:	Ceiling mounting Wall mounting

Software Specifications

Wireless capability	IEEE 802.11a/n/ac/ax, IEEE 802.11b/g/n/ax wireless protocols The maximum wireless speed is 2976Mbps: 574Mbps in the 2.4GHz band and 2402Mbps in the 5GHz band Beamforming Maximum Merge Ratio (MRC) Space-Time Block Code (STBC) Cyclic Time-Delay/Cyclic Shift Diversity (CDD/CSD) LDPC low-density parity Maximum Likelihood Decoding (MLD) Wireless Speed Up Parameter (ShortGI) SSID Broadcast/Hide Number of SSIDs: 2.4G: 7, 5G: 7 Chinese SSID, including GBK and UTF-8 encoding Set up the host network and employee network Channel bandwidth settings. 2.4G: 20M/40MHz/Auto; 5G: 20M/40M/80M/160MHz/Automatic Dynamic Channel Selection (DCS) Wi-Fi multi-band in one FIT mode spectrum navigation Transmit power setting: Lv1-Lv10, 1dBm step Isolation between wireless networks and within APs Beacon time slot setting Weak signal device rejection Weak signal devices are not allowed to access IEEE 802.11k/v/r protocol intelligent roaming Automatic RF tuning WMM: Priority-based data processing and forwarding WDS function Limit on the number of wireless clients OFDMA TWT
Network characteristics	Rate and duplex mode auto-negotiation, automatic MDI/MDI-X In FIT mode, CAPWAP interrupts service persistence AC dual-link backup in FIT mode LLDP link discovery VLANs are assigned based on the SSID to which the user accesses Manage VLANs Obtain an IP address by using DHCP Smart DHCP server FAT mode, DHCPv6, IPv6 address access, radiusv6 authentication, and other functions FIT mode: CAPWAPv6, Wportalv6 authentication, DHCPv6 protection, and other functions
Cybersecurity	FIT mode Portal authentication, MAC address authentication, and 802.1x authentication WPA-PSK Authentication/Encryption (WPA Personal) WPA-802.1X Authentication/Encryption (WPA Enterprise Edition) WPA2-PSK Authentication/Encryption (WPA2 Personal) WPA2-802.1X Authentication/Encryption (WPA2 Enterprise Edition) WPA3-SAE Authentication/Encryption (WPA3 Personal) WPA-WPA2 hybrid authentication is supported WPA2-WPA3 hybrid authentication is supported Whitelist management of devices that can be accessed The SSID is bound to the Tag VLAN FIT mode broadcast storm suppression DHCP protection in FIT mode ARP protection in FIT mode
How it's managed	FIT mode wireless controller (AC) unified management FAT mode is managed independently of web pages Centralized management of the NMS commercial cloud platform Centralized management of TP-LINK network management system
System administration	Username/password management Syslog viewing/downloading/sending servers Manually set the synchronization time of the active-low NTP server Back up the configuration Import the configuration Factory reset Restart your device Local online upgrade, local firmware upgrade, and cloud upgrade Ping watchdog function, abnormal devices are automatically recovered In the first aid mode, the abnormal device enters the first aid page to upgrade the firmware
