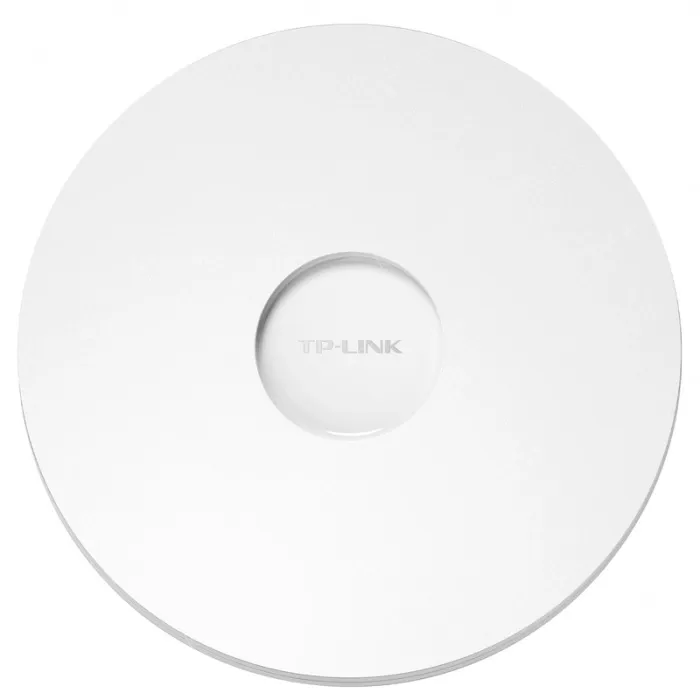

      AX11000 Tri-band Wi-Fi 6 wireless in-ceiling AP
      • AX11000 Tri-band Wi-Fi 6 wireless in-ceiling AP
      • AX11000 Tri-band Wi-Fi 6 wireless in-ceiling AP
      • AX11000 Tri-band Wi-Fi 6 wireless in-ceiling AP
      • AX11000 Tri-band Wi-Fi 6 wireless in-ceiling AP
      • AX11000 Tri-band Wi-Fi 6 wireless in-ceiling AP

      AX11000 Tri-band Wi-Fi 6 wireless in-ceiling AP

      ★ ★ ★ ★ ★ 4.9 5 Reviews

      Model: TL-XHDAP11009GC-PoE/DC

      Order No: TL-XHDAP11009GC-PoE/DC

      SKU: 1716261795943736405

      Category: Wireless access point

      Brand: TP-LINK

      Condition: New Sealed Under Guarantee

      Size: 0.00cm, 0.00cm, 73.00mm; Diam:390.00mm

      Weight: 0.00kg

      Product Selection Engineer: Huankanheng

      Leading

      Shipping

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      Are you a Supplier?

      Join Us in Delivering Excellence Worldwide

      Apply to join

      You May Also Like

      Selling List

      Description Reviews
      AX11000 Tri-band Wi-Fi 6 wireless in-ceiling AP
      • 11ax tri-band concurrency, three radios are connected at the same time, and the maximum wireless rate can reach 10756Mbps, which is double the number of ordinary dual-band APs
      • 1 x 10G SFP+ port, 1 x 10G Ethernet port, and 1 x 1G Ethernet port provide high-speed wired connection
      • The wireless transmit power is linearly adjustable, and the signal coverage is adjusted according to the demand
      • Professional tri-band antenna to improve the signal quality of the coverage area
      • Spectrum navigation guides dual-band clients to connect to the 5 GHz band preferentially, so that the load of the 2.4 GHz and 5 GHz frequency bands is more balanced and network performance is ensured
      • Simple ceiling mounting, powered by 802.3bt/at standard PoE network cable
      • Concealed port housing, beautiful wiring
      • Fat and thin are integrated, and different working modes are selected in different environments
      • Independent hardware protection circuit, which can automatically restore abnormal APs
      • FIT mode supports automatic radio calibration
      • FIT mode supports intelligent roaming technology
      • Supports 4K QAM transmission technology
      • Centralized management of TP-LINK commercial network cloud platform is supported
      • Support TP-LINK business cloud APP remote viewing/management
      • It can provide a simpler, more convenient, and more secure network experience for small and medium-sized businesses
      AX11000 Tri-band Wi-Fi 6 wireless in-ceiling AP

      Hardware specifications

      Product model
      • TL-XHDAP11009GC-PoE/DC Easy Exhibition Edition
      Installation:
      • Ceiling/wall mounting
      Size
      • Φ390×73mm
      Wireless
      • 2.4GHz frequency band: 1148Mbps
      • 5GHz-1 band: 4804Mbps, 5GHz-2 band: 4804Mbps
      Bluetooth
      • Bluetooth 4.1
      • Cooperate with the TP-LINK business cloud app to implement the Bluetooth O&M function of the AP
      Port
      • 1 x 1/2.5/10G RJ45 port
      • 1 x 10/100/1000M RJ45 port
      • 1 x 10G SFP+ optical port
      • 1 DC port
      Light
      • 1 system indicator
      Button
      • 1 Reset button
      • 1 x FAT/FIT mode toggle switch
      • 1 easy-to-expand button
      Power supply mode
      • 802.3bt/at standard PoE power supply
      • 53.5V/1.22A DC power supply (53.5V/1.22A power adapter shipped from the factory)
      • Passive PoE power supply
      • Support dual network port aggregation power supply (see user manual for aggregation instructions)
      Power consumption of the whole machine
      • Maximum power consumption: 59W
      • Standby power consumption: 21W
      Manage
      • FIT AP MODE: MANAGED BY TP-LINK WIRELESS CONTROLLER (AC).
      • FAT AP mode: independent web page management
      • TP-LINK commercial network cloud platform is centrally managed
      Use environment
      • Operating temperature: 0°C~40°C
      • Operating humidity: 10%~90%RH non-condensing
      • Storage temperature: -40°C~70°C
      • Storage humidity: 5%~90%RH non-condensing

      Software Specifications

      Wireless capability
      • IEEE 802.11a/n/ac/ax, IEEE 802.11b/g/n/ax wireless protocols
      • 2.4GHz band 4×4 MU-MIMO; 4×4 MU-MIMO in the 5GHz-1 band, 8×8MU-MIMO in the 5GHz-2 band
      • Supports 4K QAM
      • Maximum Merge Ratio (MRC)
      • Space-Time Block Code (STBC)
      • Cyclic Time-Delay/Cyclic Shift Diversity (CDD/CSD)
      • LDPC low-density parity
      • Wireless Speed Up Parameter (ShortGI)
      • SSID Broadcast/Hide
      • Number of SSIDs: 2.4 GHz: 7, 5 GHz 1:7, 5 GHz 2: 7
      • Chinese SSID, including GBK and UTF-8 encoding
      • Network type: guest network, employee network
      • Channel bandwidth settings. 2.4GHz: 20M/40MHz/Auto; 5GHz-1: 20M/40M/80M/160MHz/Auto; 5GHz-2: 20M/40M/80MHz/Auto
      • Dynamic Channel Selection (DCS
      • Wi-Fi multi-band in one
      • Wireless encryption: WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK, WPA3
      • User isolation: Isolation between wireless networks and within APs
      • Transmit power setting: Lv1-Lv10, 1dBm step
      • Isolation between wireless networks and within APs
      • Beacon time slot setting
      • Limit on the number of wireless clients: Yes
      • QoS: WMM, priority-based data processing and forwarding
      • WDS: Yes
      • Kick out weak signal devices and prohibit weak signal devices from accessing: Yes
      • IEEE 802.11k/v/r protocol intelligent roaming
      • OFDMA
      • TWT
      The maximum number of clients that can be associated
      • 512（2.4GHz）+512（5GHz-1）+512（5GHz-2）
      Network characteristics
      • Rate and duplex mode auto-negotiation, automatic MDI/MDI-X
      • In FIT mode, offline self-management is supported, and CAPWAP interrupts service maintenance
      • LLDP link discovery
      • VLANs are assigned based on the SSID to which the user accesses
      • Manage VLANs
      • Obtain an IP address by using DHCP
      • Smart DHCP server
      • FAT mode, DHCPv6, IPv6 address access, radiusv6 authentication, and other functions
      • FAT mode, DHCPv6, IPv6 address access, radiusv6 authentication, and other functions
      Cybersecurity
      • FIT mode for portal authentication and MAC address authentication
      • WPA, WPA2, WPA-PSK, WPA2-PSK, WPA3 encryption
      • Whitelist management of devices that can be accessed
      • The SSID is bound to the Tag VLAN
      • FIT mode broadcast storm suppression
      • DHCP protection in FIT mode
      • ARP protection in FIT mode
      How it's managed
      • FIT mode wireless controller (AC) unified management
      • FAT mode is managed independently of web pages
      • Centralized management of commercial cloud platforms
      • Centralized management of TP-LINK business cloud APP
      • Centralized management of TP-LINK network management system (NMS).
      System administration
      • Device management: full Chinese WEB management
      • Username/password management
      • Manually set the synchronization time of the active-low NTP server
      • Syslog: Yes
      • Factory Reset: Yes
      • Backup configuration: Yes
      • Import Configuration: Yes
      • Software Upgrades: Yes
      • Ping Watchdog: Yes
      • In the first aid mode, the abnormal device enters the first aid page to upgrade the firmware
