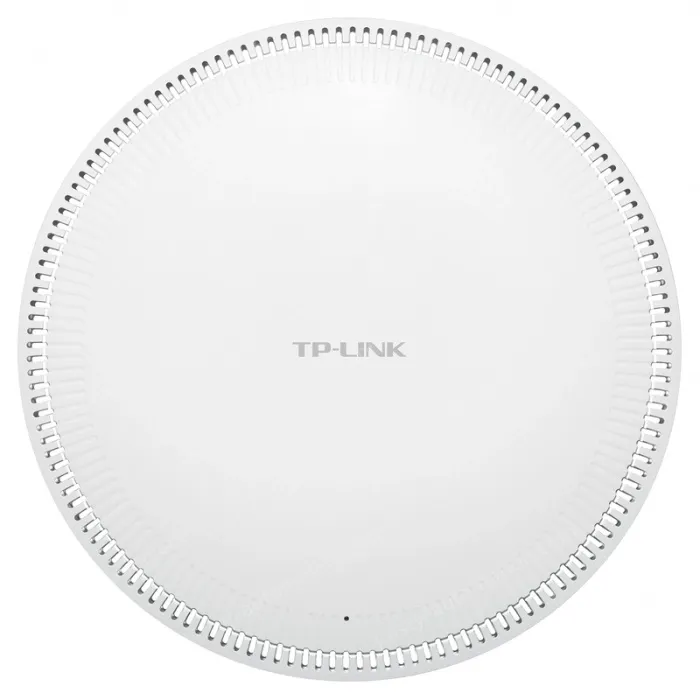

      AX5400 Tri-Band Gigabit Wi-Fi 6 Wireless In-Ceiling AP
      • AX5400 Tri-Band Gigabit Wi-Fi 6 Wireless In-Ceiling AP
      • AX5400 Tri-Band Gigabit Wi-Fi 6 Wireless In-Ceiling AP
      • AX5400 Tri-Band Gigabit Wi-Fi 6 Wireless In-Ceiling AP
      • AX5400 Tri-Band Gigabit Wi-Fi 6 Wireless In-Ceiling AP

      AX5400 Tri-Band Gigabit Wi-Fi 6 Wireless In-Ceiling AP

      ★ ★ ★ ★ ★ 4.9 5 Reviews

      Model: TL-NXAP5400-GC3-PD

      Order No: TL-NXAP5400-GC3-PD

      SKU: 1716261604899719982

      Category: TP-LINK

      Brand: TP-LINK

      Condition: New Sealed Under Guarantee

      Size: 0.00cm, 0.00cm, 43.30mm; Diam:235.00mm

      Weight: 0.00kg

      Product Selection Engineer: Huankanheng

      Leading

      Shipping

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      Are you a Supplier?

      Join Us in Delivering Excellence Worldwide

      Apply to join

      You May Also Like

      Selling List

      Description Reviews
      AX5400 Tri-Band Gigabit Wi-Fi 6 Wireless In-Ceiling AP
      • Next-generation Wi-Fi 6 (802.11ax) technology
      • 11AX tri-band concurrency, the whole machine supports 6 streams, and the maximum wireless rate can reach 5378Mbps
      • Support 2.4G/5.2G/5.8G (2.400GHz~2.4835GHz, 5150MHz-5350MHz and 5725MHz~5850MHz) three bands
      • Dual Gigabit Ethernet ports, faster Internet access and more flexible networking
      • Built-in omnidirectional antenna and independent RF circuit design improve the signal quality in the coverage area
      • Concealed port housing, beautiful wiring
      • Automatic RF tuning optimizes overall performance
      • Fat and thin are integrated, and different working modes are selected in different environments
      • Smart roaming for a better wireless experience
      • DC, 802.3bt/at PoE and Passive PoE power supply, flexible distribution
      • Ceiling/wall mount for easy maintenance
      • Centralized management of TP-LINK commercial network cloud platform is supported
      • It can provide a simpler, more convenient, and more secure network experience for small and medium-sized businesses
      AX5400 Tri-Band Gigabit Wi-Fi 6 Wireless In-Ceiling AP

      Hardware specifications

      Product model
      • TL-NXAP5400-GC3-PD
      Installation:
      • Ceiling/wall mounting
      Size
      • Φ235×43.3mm (without mounting parts)
      Wireless
      • 2.4GHz frequency band: 574Mbps
      • 5G 1Hz band: 2402Mbps
      • 5G 1Hz band: 2402Mbps
      Port
      • 2 x 10/100/1000MMbps RJ45 ports (IEEE 802.3bz supported)
      • 1 DC interface
      Antenna coverage angle
      • 360°
      Light
      • 1 system indicator
      Button
      • 1 RESET button
      • 1 x FAT/FIT mode toggle switch
      Power supply
      • 53.5VDC/0.81A Passive PoE power supply, power supply distance up to 100M
      • IEEE 802.3bt/at standard PoE power supply
      • 12V DC power supply
      Power consumption
      • 19w
      Manage
      • FIT AP MODE: MANAGED BY TP-LINK WIRELESS CONTROLLER (AC).
      • FAT AP mode: independent web page management
      • TP-LINK commercial network cloud platform is centrally managed
      Use environment
      • Operating temperature: 0°C~40°C
      • Operating humidity: 10%~90%RH non-condensing
      • Storage temperature: -40°C~70°C
      • Storage humidity: 5%~90%RH non-condensing

      Software Specifications (FAT AP Mode)

      Wireless capability
      • SSID Broadcast: Yes
      • Number of SSIDs: 8 (2.4 GHz) + 8 (5 GHz)
      • Network type: guest network, employee network
      • Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK
      • User isolation: Isolation between wireless networks and within APs
      • Wireless MAC address filtering: whitelist supported(50)
      • VLAN settings: SSID and Tag VLAN bindings are supported
      • WDS Function: Yes
      • Limit on the number of wireless clients: Yes
      • QoS：WMM
      • Kick out weak signal devices and prohibit weak signal devices from accessing: Yes
      System administration
      • Device management: full Chinese WEB management
      • Syslog: Yes
      • Factory Reset: Yes
      • Backup configuration: Yes
      • Import Configuration: Yes
      • Software Upgrades: Yes
      • Ping Watchdog: Yes
