The next-generation Wi-Fi 6 technology provides high-speed and stable wireless networks

2.4G/5G dual-band concurrency, with a wireless rate of up to 2976Mbps, meeting the needs of multi-user and high-bandwidth scenarios. The 2.4GHz frequency band has strong compatibility and long transmission distance, and the 5GHz frequency band is pure, less interference, and dual-band concurrency, which can be widely used in dense environmental scenarios such as hotels, apartments, dormitories, and villas.

Independent power amplifier circuit to improve wireless coverage 2.4G

/5G independent power amplifier circuit design reduces wireless signal reception noise interference, improves wireless coverage effect, and makes wireless coverage performance more powerful.

It supports wireless MESH networking, making it more convenient to expand blind spot signal coverage

Through TP-LINK MESH technology, it is networked with MESH equipment, and TL-XAP3022GI-PoE thin deep space silver (square) is added through the WEB interface to achieve wireless signal coverage in signal blind spots

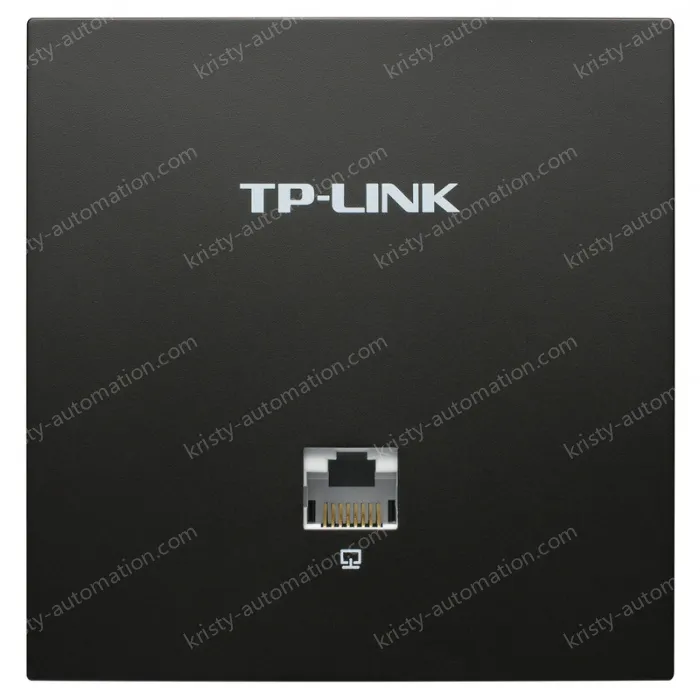

National standard 86 panel design, PoE power supply, easy to install and simple

to use The national standard 86 panel design can directly replace the original network panel, with a wall thickness of only 9.4mm, no need to re-wiring and no damage to the original decoration. It supports 802.3af/at standard PoE network cable power supply, and each AP only needs one network cable, which is not restricted by power supply conditions, and the AP is simple to deploy and easy to construct.

Automatically select the appropriate channel for a smooth and stable

network According to the wireless channel usage of the AP's environment, the appropriate channel is automatically selected to avoid co-channel interference and ensure wireless stability.

Fat AP mode (suitable for small-area wireless coverage): no need to use TP-LINK wireless controller (AC), AP can work independently, and the wireless network cost is low;
Thin AP (FIT AP) mode (suitable for large-area wireless coverage): It needs to be used with the TP-LINK wireless controller (AC), which can manage all APs through the AC, reducing the difficulty of wireless management.

Automatic Radio Calibration Optimizes the Overall Performance

of the Wireless Network Automatic radio calibration automatically calculates the neighbor relationships between APs in the network, and automatically adjusts the wireless transmit power and channel based on the real-time interference and load conditions of nearby devices to ensure that the overall wireless network is always at high speed, high-performance operating state.

Intelligent roaming technology improves the wireless experience

of each user Intelligent roaming technology based on the 802.11kvr protocol is used to help mobile phones, pads, Terminals such as computers are automatically connected to APs with the best signal quality, effectively improving the user experience and the overall performance of the wireless network.

A variety of unified management methods, support remote management

Support TP-LINK commercial network cloud platform centralized management
Support TP-LINK network management system centralized management
Support TP-LINK business cloud APP remote viewing/management

• Next-generation Wi-Fi 6 (802.11ax) technology
• 11AX 2.4G/5G dual-band concurrency, wireless speed up to 2976Mbps
• There is a Gigabit RJ45 port on the front and a 2.5G RJ45 port on the back
• GB 86 shell, elegant appearance
• Powered by 802.3af/at standard PoE network cable, no external power supply is required
• Support TP-LINK easy to expand function, and the device can be connected by discovering it in the WEB
• Spectrum navigation guides dual-band users to connect to the 5GHz band first, so that the two frequency bands of 2.4GHz and 5GHz are load balanced to ensure network performance
• FIT mode supports automatic RF calibration
• FIT mode supports intelligent roaming
• Support the function of rejecting and disabling weak signal devices
• Fat and thin are integrated, and different modes can be selected according to different application environments
• It supports centralized management of TP-LINK commercial network cloud platform
• Support TP-LINK business cloud APP remote viewing/management
• Machine size (mm): 88*86*45.4, wall thickness 9.4mm
• It can provide a simpler, more convenient, and more secure network experience for small and medium-sized businesses

Hardware specifications

Software Specifications (FAT AP Mode)
