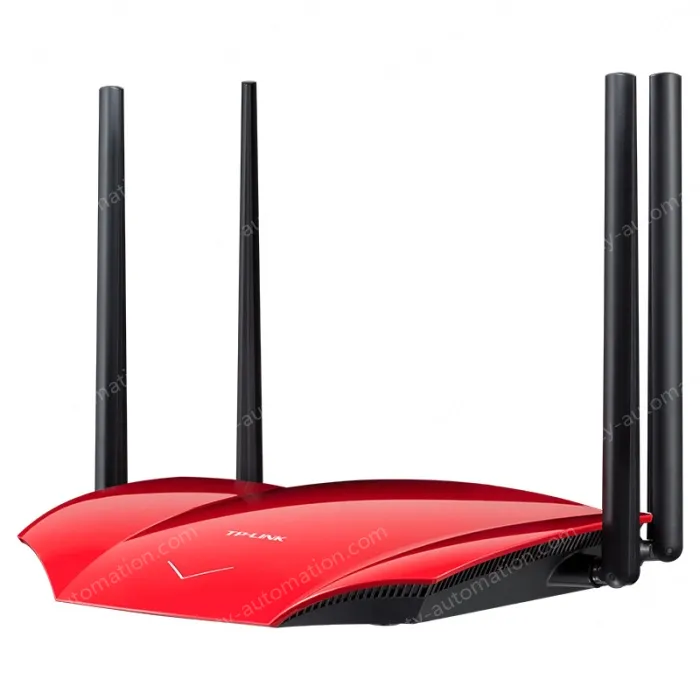

      AX1800 dual-band Gigabit Wi-Fi 6 desktop AP
      • AX1800 dual-band Gigabit Wi-Fi 6 desktop AP
      • AX1800 dual-band Gigabit Wi-Fi 6 desktop AP
      • AX1800 dual-band Gigabit Wi-Fi 6 desktop AP
      • AX1800 dual-band Gigabit Wi-Fi 6 desktop AP
      • AX1800 dual-band Gigabit Wi-Fi 6 desktop AP

      AX1800 dual-band Gigabit Wi-Fi 6 desktop AP

      ★ ★ ★ ★ ★ 4.9 5 Reviews

      Model: TL-XAP1800GD

      Order No: TL-XAP1800GD

      SKU: 1716366671358698160

      Category: TP-LINK

      Brand: TP-LINK

      Condition: New Sealed Under Guarantee

      Size: 223.00mm, 164.00mm, 33.80mm; Diam:0.00cm

      Weight: 0.00kg

      Product Selection Engineer: Huankanheng

      Leading

      Shipping

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      Are you a Supplier?

      Join Us in Delivering Excellence Worldwide

      Apply to join

      You May Also Like

      Selling List

      Description Reviews
      AX1800 dual-band Gigabit Wi-Fi 6 desktop AP
      • Next-generation Wi-Fi 6 (802.11ax) technology
      • 11AX dual-band concurrency, the maximum wireless rate can reach 1775Mbps
      • The wireless transmit power is linearly adjustable, and the signal coverage is adjusted according to the demand
      • Professional dual-band antenna to improve the signal quality of the coverage area
      • Spectrum navigation guides dual-band clients to connect to the 5 GHz band preferentially, so that the load of the 2.4 GHz and 5 GHz frequency bands is more balanced and network performance is ensured
      • Fat and thin are integrated, and different working modes are selected in different environments
      • FIT mode supports automatic radio calibration
      • FIT mode supports intelligent roaming technology
      • Centralized management of TP-LINK commercial network cloud platform is supported
      • Support TP-LINK business cloud APP remote viewing/management
      AX1800 dual-band Gigabit Wi-Fi 6 desktop AP

      Hardware specifications

      Product model
      • TL-XAP1800GD Easy Exhibition Edition
      Installation:
      • Desktop mounting
      Size
      • 223*164*33.8mm
      Wireless rate
      • 2.4GHz ：574Mbps
      • 5GHz ：1201Mbps
      Port
      • 4 x 10/100/1000M RJ45 ports (support WAN/LAN auto-adaptation in route mode)
      • 1 x DC power socket connector
      Antenna
      • 2 external 2.4GHz non-detachable omnidirectional antennas
      • 2 external 5GHz non-detachable omnidirectional antennas
      Light
      • SYS system indication
      • Link/Act indication for each port
      Button
      • 1 Reset button
      • 1 easy-to-unroll button
      Power supply
      • 12VDC/1A
      Manage
      • FIT AP MODE: MANAGED BY TP-LINK WIRELESS CONTROLLER (AC).
      • FAT AP mode: independent web page management
      Use environment
      • Operating temperature: 0°C~40°C
      • Operating humidity: 10%~90%RH non-condensing
      • Storage temperature: -40°C~70°C
      • Storage humidity: 5%~90%RH non-condensing

      Software Specifications (FAT AP Mode)

      Wireless capability
      • SSID Broadcast: Yes
      • Number of SSIDs: 8 (support Chinese SSID)
      • Network type: guest network, employee network
      • Wireless encryption: WPA, WPA2, WPA-PSK, WPA2-PSK
      • User isolation: Isolation between wireless networks and within APs
      • Wireless MAC address filtering: whitelist is supported
      • VLAN settings: SSID and Tag VLAN bindings are supported
      • Transmit power setting: support 1dBm linear adjustment
      • WDS Function: Yes
      • Limit on the number of wireless clients: Yes
      • QoS：WMM
      • Kick out weak signal devices: Yes
      • Disable Weak Signal Device Access: Yes
      • Automatic RF tuning is supported
      • Intelligent roaming is supported
      The maximum number of clients that can be associated
      • 128（2.4G）+128（5G）
      System administration
      • Device management: full Chinese WEB management
      • Syslog: Yes
      • Factory Reset: Yes
      • Backup configuration: Yes
      • Import Configuration: Yes
      • Software Upgrades: Yes
      • Ping Watchdog: Yes
