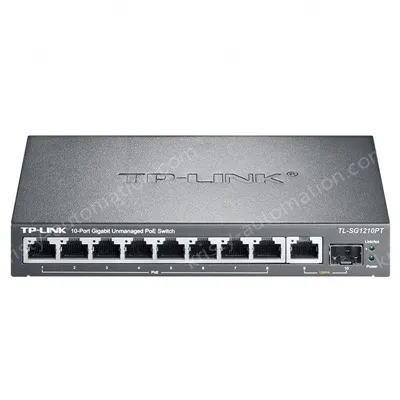

TL-SG1210PT is a fully gigabit unmanaged PoE switch independently developed by TP-LINK, in which ports 1~8 support PoE+ function, comply with IEEE 802.3af/at standard, single-port PoE power up to 30W, and the maximum PoE output power of the whole machine is 120W. As a PoE power supply device, it can automatically detect and identify the powered device that meets the standard and supply it with network cables. Plug-and-play, simple and convenient to use, suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to build cost-effective PoE networks.

• 8 x 10/100/1000Base-T RJ45 ports (PoE+ power supply)
• 1 x 10/100/1000Base-T RJ45 port and 1 x independent Gigabit SFP port
• The maximum PoE power supply power of the whole machine is 120W, and the maximum PoE power supply power of a single port is 30W
• PoE power delivery ports support the priority mechanism
• It supports three working modes: video surveillance, VLAN isolation, and standard switching

Full Gigabit ports

• Provides 9 x 10/100/1000Base-T RJ45 ports and 1 x independent Gigabit SFP port.
• All ports support Gigabit non-blocking line-rate forwarding for smoother transmission.
• Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.

PoE power supply function

• Eight 10/100/1000Base-T RJ45 ports support PoE+ power supply to meet the requirements of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.
• In line with the IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 121W, and the maximum PoE output power of a single port is 30W.
• Automatically identify PoE devices for power supply without damaging non-PoE devices.
• PoE ports support a priority mechanism to ensure the power supply of high-priority ports when the remaining power is insufficient, so as to prevent devices from overloading.

Three modes of operation

• The standard switching mode ---- all ports communicate freely, which is suitable for common data transmission environment;
• The video surveillance mode ---- specially designed for surveillance application scenarios to improve the stuttering and mosaic phenomenon in the surveillance network.
• VLAN isolation mode --- suitable for scenarios where wireless APs are connected, suppressing network storms and improving network performance.

The equipment is stable and reliable

• The low-power design of the host and natural heat dissipation ensure the stable operation of the product.
• It adopts TP-LINK's self-developed power supply and high redundancy design to provide long-term and stable PoE power output.

It's easy to use

• Plug and play, no configuration required, simple and convenient.
• Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link/Act).
