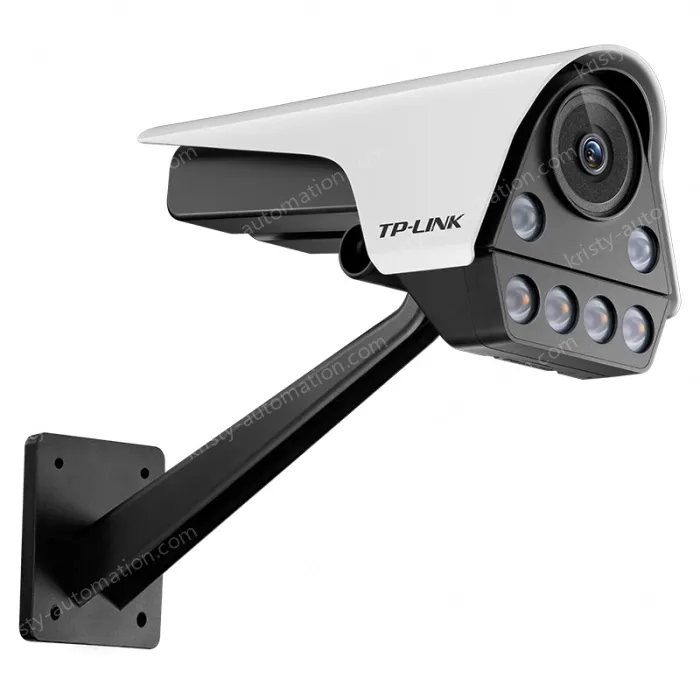

      3 million pixel barrel dual-light full-color network camera
      • 3 million pixel barrel dual-light full-color network camera
      • 3 million pixel barrel dual-light full-color network camera
      • 3 million pixel barrel dual-light full-color network camera
      • 3 million pixel barrel dual-light full-color network camera
      • 3 million pixel barrel dual-light full-color network camera

      3 million pixel barrel dual-light full-color network camera

      ★ ★ ★ ★ ★ 4.9 4 Reviews

      Model: TL-IPC536F-W

      Order No: TL-IPC536F-W

      SKU: 1720408847307766859

      Category: TP-LINK

      Brand: TP-LINK

      Condition: New Sealed Under Guarantee

      Size: 226.50mm, 100.90mm, 102.70mm; Diam:0.00cm

      Weight: 383.00g

      Product Selection Engineer: Huankanheng

      Leading

      Shipping

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      Are you a Supplier?

      Join Us in Delivering Excellence Worldwide

      Apply to join

      You May Also Like

      Selling List

      Description Reviews
      3 million pixel barrel dual-light full-color network camera
      • The resolution can reach 2304×1296
      • External 4 white lights, 2 infrared lights, support full color/infrared/motion detection full color
      • Built-in microphone, support 5M pickup
      • It supports up to 128GB Micro SD card for longer storage time
      • Comes with a bracket, easy to install; It can be adjusted up to 360° horizontally and 145° vertically
      • Supports intelligent perimeter prevention, including cross-border detection and area intrusion
      • IP67 dustproof and waterproof, meeting various indoor and outdoor application scenarios
      • Support APP remote monitoring, NVR cross-network segment adding
      3 million pixel barrel dual-light full-color network camera

      Image and video parameters

      Basic parameters
      • Sensor type: 1/2.7" CMOS
      • Minimum illumination: 0. 01Lux@F1.6 (color mode); 0Lux (fill light on)
      • Shutter speed: 1/25 sec. to 1/100,000 sec.; It can be adjusted manually or automatically
      • Day/night mode: ICR IR filter type
      • Digital Noise Reduction: 3D Noise Reduction
      • Gain Control: Automatic
      • White Balance: Auto
      • Backlight Compensation: Yes
      Video encoding standards
      • Encoding standard: H.265+/H.265/H.264
      • Encoding bitrate: 256Kbps~6Mbps
      Focal length
      • TL-IPC536F-W4：4mm
      • TL-IPC536F-W6：6mm
      • TL-IPC536F-W8：8mm
      • TL-IPC536F-W12：12mm
      Lens parameters
      • Zoom Type: Fixed Focus
      • Aperture Control: Fixed
      Video parameters
      • Maximum image size: 2304*1296
      • Number of streams: 4 main + 3 sub
      • Main stream resolution and frame rate: 2304*1296, 2048*1280, 1920*1080, 1280*720;25fps,20fps,15fps,10fps,5fps,1fps;
      • Sub-stream resolution and frame rate: 640*480,704*576,352*288,320*240;25fps,20fps,15fps,10fps,5fps,1fps;
      • Video bitrate: H.265+/H.265/H.264 bitrate can be adjusted
      • Image settings: Saturation, brightness, contrast, sharpness, etc. are adjustable
      • Region of Interest (ROI): Yes
      Fill in the light
      • Number and type of fill lights: 2 infrared lights + 4 white lights
      • Illumination modes: Infrared, Full Color, Full Color Motion Detection
      • Default lighting mode: Full color
      Viewing angle
      • Horizontal: 94° (4mm model)
      • Vertical: 51° (4mm model)

      General parameters

      Interface
      • Network interface: 1 x 10/100Mbps Ethernet port (RJ45)
      • Micro SD card interface: Yes
      • Microphone: Yes (built-in)
      Network Capabilities
      • Interface protocol: ONVIF
      • Intelligent alarm: motion detection, video occlusion, human detection
      • Supported protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP
      General parameters
      • Operating temperature and humidity: working temperature: -30°C~60°C, humidity less than 95% (non-condensing)
      • Power supply: DC12V
      • Power consumption: 6W MAX
      • Size: 226.5*100.9*102.7mm
      • Weight: 383g
      • Dustproof and waterproof rating: IP67
      Fittings
      • Accessories list: screw hole positioning sticker*1, expansion screw package*1, waterproof kit*1, silicone plug*2, manual*1
      • Power supply: Not sold with power supply
      • Bracket: Comes with a stand
      ">
