FPC flexible cable optional: 10cm/20cm
Support ROI, gain, auto gain, exposure, auto exposure
Two exposure time modes: Standard Exposure Mode / Minimal Exposure Mode
Supports Gamma, Binning, Pixel Sampling, Black Level, Auto Black Level, Digital Shift
Ambient light presets, color conversion, and saturation functions are supported
Support sequence function, can preset N groups of different parameters
Lookup table, parameter group, counter, and timer functions
Remove the parameter range limit, and you can expand the range values of parameters such as exposure, gain, white balance, etc
16KB is used to save algorithm coefficients, parameter configurations, etc
512KB is used to store large data and files

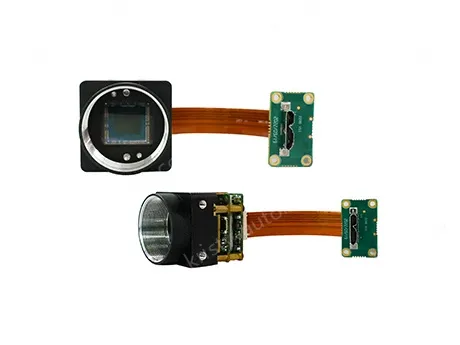

Model | VE2S-301-125U3C-S |
Brand | Daheng image |
Resolution | 2048×1536 |
Frame rate (fps) | 125 |
Sensor manufacturers | Sony |
Sensor | 1/1.8" IMX252 Global shutter CMOS |
Cell size | 3.45μm |
Pixel depth | 8 bit，10 bit，12 bit |
Data interface | USB3.0 (Vertical FPC) |
Lens mount | C |
Spectrum | Colored |
Image data format | Bayer RG8，Bayer RG10，Bayer RG12 |
Signal-to-noise ratio | 41 db |
Exposure time | 20μs ~ 1s |
Gain | 0db ~ 24db |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 optodecoupled input, 1 optodecoupled output, 2 bidirectional gpios, 1 UART serial port (multiplexed GPIO) |
Rated power | < 2.8 W @ 5 VDC |
Power supply requirements | 5 VDC |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 31 mm × 29 mm × 39.3 mm (without C-mount length) |
Weight | 30 g |
Certifications & Standards | CE，rohs，USB3 Vision，genicam |
">
