Trigger Type: Frame Start / Frame High-Speed Burst Start
Gamma, Binning, and Decimation
Support digital shift, black level, flat field correction, static dead pixel correction functions
Support sharpening and noise reduction
Lookup tables, parameter groups, counters, and timer functions are supported
You can remove the parameter range restriction to expand the range of parameters
A 16KB user data area is provided to save algorithm coefficients and parameter configurations

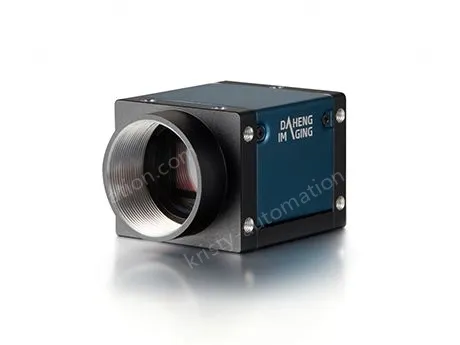

Model | ME2P-900-43U3M |
Brand | Daheng image |
Resolution | 4200×2160 |
Frame rate (fps) | 43.5 |
Sensor manufacturers | Gpixel |
Sensor | 2/3" GMAX2509 Global shutter CMOS |
Cell size | 2.5μm |
Pixel depth | 8 bit，12 bit |
Data interface | USB3.0 |
Lens mount | C，CS |
Spectrum | Black and white |
Image data format | Mono8，Mono12 |
Signal-to-noise ratio | 36.94 db |
Exposure time | 11μs ~ 1s |
Gain | 0db ~ 16db |
Binning | 1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4 |
Pixel sampling | Horizontal FPGA, Vertical Sensor: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
Mirror flip | Horizontal mirroring, vertical mirroring |
Rated power | < 3.5 W @ 5 VDC |
Power supply requirements | USB 3.0 interface power supply |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 36 mm × 31 mm × 38.8 mm |
Weight | 66 g |
Certifications & Standards | CE，rohs，FCC，ICES，UKCA，USB3.0 Vision，genicam |
">
