Gamma, black level
Lookup table, parameter group, counter function
Supports pixel sampling, binning, and digit shifting
Remove the parameter range limit, and expand the range value of parameters such as exposure and gain
A 16KB user data area is provided to save algorithm coefficients, parameter configurations, etc

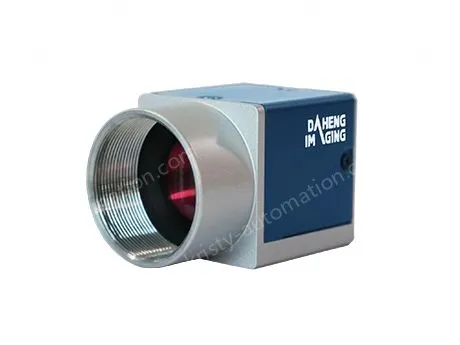

Model | ME2C-303-37GM(-P) |
Brand | Daheng image |
Resolution | 2048×1536 |
Frame rate (fps) | 37.4 |
Sensor manufacturers | Sony |
Sensor | 1/1.8" Sony Global shutter CMOS |
Cell size | 3.45μm |
Pixel depth | 8 bit，12 bit |
Data interface | Gige |
Lens mount | C，CS |
Spectrum | Black and white |
Image data format | Mono8，Mono12 |
Signal-to-noise ratio | ME2C-G：40.76 db； ME2C-G-P：40.86 db |
Exposure time | Minimum: 1μs ~ 100μs; Standard: 20μs ~ 1s |
Gain | 0db ~ 24db |
Binning | FPGA：1×1，1×2，2×1，2×2 |
Pixel sampling | FPGA：1×1，1×2，2×1，2×2 |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 optodecoupled input, 1 optodecoupled output, 1 bidirectional GPIO |
Rated power | < 3 W @ 24 VDC； < 3.75 W @ poe |
Power supply requirements | 12 ~ 24 VDC (-P supports poe power supply) |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | ME2C-G：29 mm × 29 mm × 29 mm； ME2C-G-P：29 mm × 29 mm × 40.3 mm |
Weight | ME2C-G：62g； ME2C-G-P：75g |
Certifications & Standards | CE，rohs，UL，FCC，gige Vision，genicam |
">
