Two Trigger Types: Frame Start / Frame Burst Start
Supports Gamma, pixel sampling, binning, digital shift, black level
Lookup table, parameter group, counter, and timer functions
Remove the parameter range limit, and expand the range value of parameters such as exposure and gain
You can adjust the packet length, packet interval, and reserved bandwidth to optimize the simultaneous collection and transmission of multiple machines
A 16KB user data area is provided to save algorithm coefficients, parameter configurations, etc

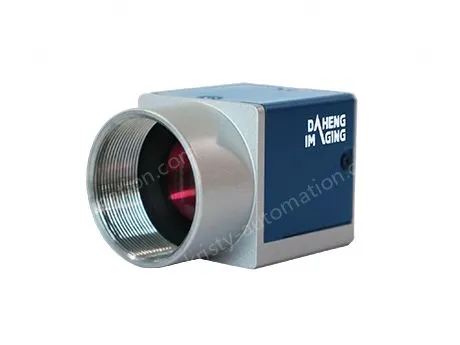

Model | ME2C-051-120GM(-P) |
Brand | Daheng image |
Resolution | 808×608 |
Frame rate (fps) | 120 |
Sensor manufacturers | On Semi |
Sensor | 1/3.6" PYTHON 480 Global shutter CMOS |
Cell size | 4.8μm |
Pixel depth | 8 bit，10 bit |
Data interface | Gige |
Lens mount | C，CS |
Spectrum | Black and white |
Image data format | Mono8，Mono10 |
Signal-to-noise ratio | 39.96 db |
Exposure time | Standard: 5μs ~ 1s |
Gain | 0db ~ 24db |
Binning | 1×1，1×2，2×1，2×2 |
Pixel sampling | FPGA：1×1，1×2，2×1，2×2 |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 opto-decoupled input, 1 opto-decoupled output, 1 bidirectional GPIO |
Rated power | < 3 W @ 24 VDC； < 3.75 W @ poe |
Power supply requirements | 12 ~ 24 VDC (-P supports poe power supply) |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | ME2C-G：29 mm × 29 mm × 29 mm； ME2C-G-P：29 mm × 29 mm × 40.3 mm |
Weight | ME2C-G：65g； ME2C-G-P：75g |
Certifications & Standards | CE，rohs，FCC，gige Vision，genicam |
">
