Timestamps, Horizontal Binning, Pixel Sampling, Horizontal/Vertical Mirroring
The sequence control function supports the configuration of multiple sets of function parameters
Gain, Auto Gain, Gamma, Black Level, Digital Shift
Ambient light presets, color conversion, and saturation functions are supported
Support static dead pixel correction and sharpening functions
Flat field correction function
Lookup table, parameter group, counter, and timer functions
Remove the parameter range restriction to expand the range value of the parameter
Provide user data area to save algorithm coefficients, parameter configurations, etc

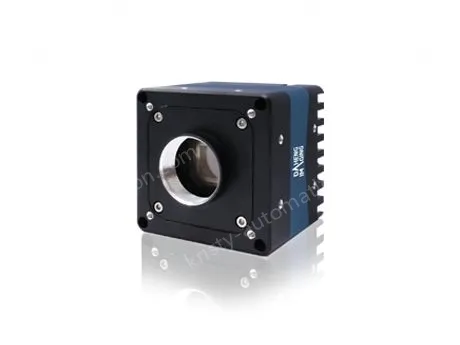

Model | MARS-2440-35GTC |
Brand | Daheng image |
Resolution | 5328×4608 |
Frame rate (fps) | 35 |
Sensor manufacturers | Sony |
Sensor | 1.2" IMX540 Global shutter CMOS |
Cell size | 2.74μm |
Pixel depth | 8 bit，10 bit，12 bit |
Data interface | 10gige |
Lens mount | C |
Spectrum | Colored |
Image data format | Bayer RG8，Bayer RG10，Bayer RG12 |
Signal-to-noise ratio | 40.09 db |
Exposure time | Minimum: 1μs ~ 2.4μs; Standard: 3μs ~ 1s |
Gain | 0db ~ 24db |
Binning | 1×1,2×1 (no vertical binning) |
Pixel sampling | Sensor：1×1，2×2 |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 optodecoupled input, 1 optodecoupled output, 1 bidirectional GPIO |
Rated power | < 12.8 W @ 12 VDC |
Power supply requirements | 12 ~ 24 VDC |
Operating temperature | 0°C ~ +50°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 60 mm × 60 mm × 54.4 mm |
Weight | 341 g |
Certifications & Standards | CE，rohs，FCC，ICES，UKCA，gige Vision，genicam |
">
