Visual security

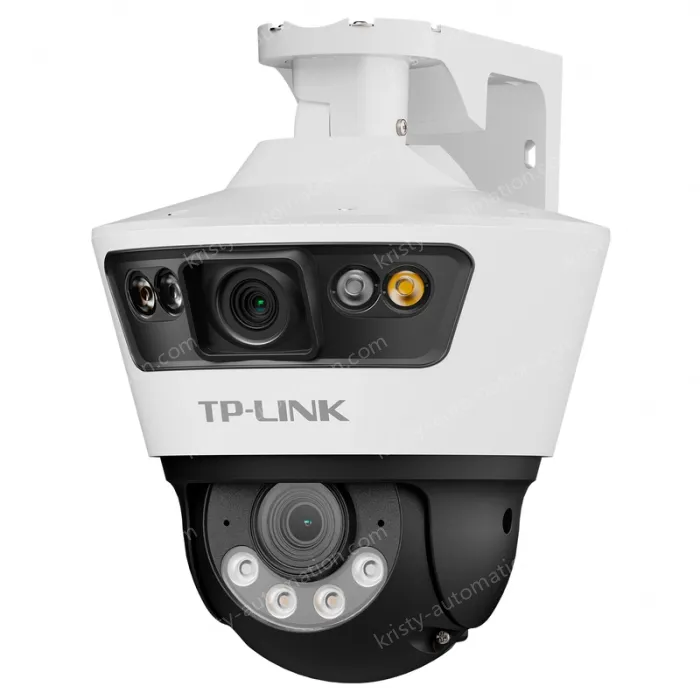

Dual-way 3 million outdoor gun ball linkage full-color ball machine

★ ★ ★ ★ ★ 4.9 4 Reviews

Bolt image and video parameters

Basic parameters	Sensor type: 1/3.0" CMOS Minimum illumination: 0. 01Lux@F2.2 (color mode); 0Lux (fill light on) Shutter speed: 1/25 sec. to 1/100,000 sec.; It can be adjusted manually or automatically Day/night mode: ICR IR filter type Digital Noise Reduction: 3D Noise Reduction Gain Control: Automatic White Balance: Auto Backlight Compensation: Yes
Video encoding standards	Encoding standard: H.265/H.264 Encoding bitrate: 256Kbps~2Mbps
Focal length	2.8mm
Lens parameters	Zoom Type: Fixed Focus Aperture Control: Fixed
Video parameters	Maximum image size: 2304*1296 Image settings: Saturation, brightness, contrast, sharpness, etc. are adjustable Region of Interest (ROI): Yes
Fill in the light	Number and type of fill lights: 2 infrared lights + 2 warm lights Illumination modes: Infrared, Full Color, Full Color Motion Detection Default lighting mode: Full color

Dome image and video parameters

Basic parameters	Sensor type: 1/3.0" CMOS Minimum illumination: 0. 01Lux@F2.2 (color mode); 0Lux (fill light on) Shutter speed: 1/25 sec. to 1/100,000 sec.; It can be adjusted manually or automatically Digital Noise Reduction: 3D Noise Reduction Gain Control: Automatic White Balance: Auto Backlight Compensation: Yes
Video and encoding standards	Encoding standard: H.265/H.264 Encoding bitrate: 64Kbps~2Mbps
Focal length	4mm
Lens parameters	Zoom Type: Fixed Focus Aperture Control: Fixed
Video parameters	Maximum image size: 2304*1296 Image settings: Saturation, brightness, contrast, sharpness, etc. are adjustable Region of Interest (ROI): Yes

General parameters

Interface	Network interface: 1 x 10/100Mbps Ethernet port (RJ45) Wi-Fi Rate: 2.4GHz 150Mbps Micro SD card interface: Yes Microphone: Yes (built-in) Speaker: Yes
Network Capabilities	Interface protocol: ONVIF Intelligent alarm: motion detection, video occlusion, human detection, vehicle detection Supported protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP
General parameters	Operating temperature and humidity: working temperature: -30°C~60°C, humidity less than 95% (non-condensing) Power supply: DC12V/1A Power consumption: 12W MAX Size: 154.59158.12161.49mm Weight: 0.65kg Dustproof and waterproof rating: IP66
