Gain, Auto Gain, Exposure Time, Auto Exposure
Output Mono8 / Mono10 via USB3.0 data interface
Parameter groups are supported
Horizontal and vertical mirroring functions are supported
Provide 16K user data area, retain algorithm coefficients, parameter configuration, etc

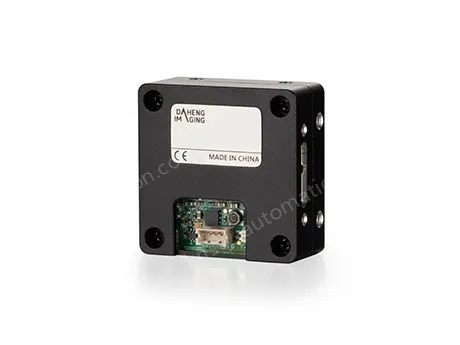

Model | VEN-830-22U3M |
Brand | Daheng image |
Resolution | 3840×2160 |
Frame rate (fps) | 22 |
Sensor manufacturers | Sony |
Sensor | 1/1.8" IMX334 Rolling shutter CMOS |
Cell size | 2.0μm |
Pixel depth | 8 bit，10 bit |
Data interface | USB3.0 |
Lens mount | No-mount，C，S，CS |
Spectrum | Black and white |
Image data format | Mono8，Mono10 |
Signal-to-noise ratio | 39.36 db |
Exposure time | Standard: 20μs ~ 1s |
Gain | 0db ~ 24db |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 optocoupled isolated input, 1 bidirectional GPIO |
Rated power | < 2.7 W @ 5 VDC |
Power supply requirements | USB 3.0 bus powered |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 35 mm × 35 mm × 15.8 mm (without lens mount length) |
Weight | 7 g ~ 32 g |
Certifications & Standards | CE，rohs，USB3 Vision，genicam |
">
