      VEN-503-36U3M-S(2448×2048,USB3.0,Mono)
      • VEN-503-36U3M-S(2448×2048,USB3.0,Mono)
      • VEN-503-36U3M-S(2448×2048,USB3.0,Mono)

      VEN-503-36U3M-S(2448×2048,USB3.0,Mono)

      ★ ★ ★ ★ ★ 4.9 4 Reviews

      Model: VEN-503-36U3M-S

      Order No: VEN-503-36U3M-S

      SKU: 1721879416401762157

      Category: Safety & Security

      Brand: Daheng

      Condition: New Sealed Under Guarantee

      Size: 20.20mm, 29.00mm, 29.00mm;

      Weight: 32.00g

      Product Selection Engineer: Zhangyuchong

      Leading

      Shipping

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      Are you a Supplier?

      Join Us in Delivering Excellence Worldwide

      Apply to join

      You May Also Like

      Selling List

      Description Reviews
      VEN-503-36U3M-S

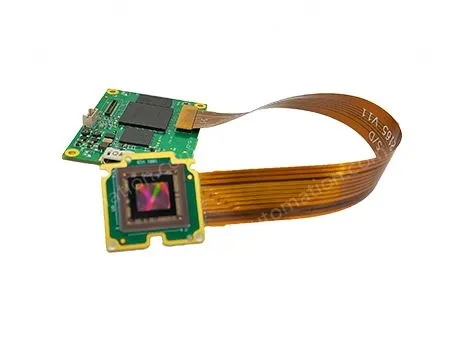

      VEN-503-36U3M-S is a Venus series (VEN-U3) split industrial digital camera independently developed by Daheng Imaging, which provides an excellent choice for users with very small space, low weight, low power consumption and low heat generation. The VEN-503-36U3M-S is a single-plate camera with a global exposure Sony IMX264 CMOS sensor that transmits image data via a USB3.0 (Micro-B) data interface, available in C-Mount and No-Mount versions, with a housing size (C-Mount) of only 29 (W) × 29 (H) × 20.2 (L) mm, providing maximum mounting flexibility.
      VEN-503-36U3M-S

      • ROI, Gain, Auto Gain, Exposure Time, Auto Exposure

      • Output Mono8 / Mono10 via USB3.0 data interface

      • Three working modes: continuous acquisition/soft trigger acquisition/external trigger acquisition

      • Support digital shift function

      • Parameter groups are supported

      • The device resets

      VEN-503-36U3M-S

      Model

      VEN-503-36U3M-S

      Brand

      Daheng image

      Resolution

      2448×2048

      Frame rate (fps)

      36

      Sensor manufacturers

      Sony

      Sensor

      2/3" IMX264 Global shutter CMOS

      Cell size

      3.45μm

      Pixel depth

      8 bit，10 bit

      Data interface

      USB3.0

      Lens mount

      No-mount，C

      Spectrum

      Black and white

      Image data format

      Mono8，Mono10

      Signal-to-noise ratio

      40.4 db

      Exposure time

      Standard: 20μs ~ 1s

      Gain

      0db ~ 24db

      I/O interface

      2 bidirectional gpios

      Rated power

      < 2.7 W @ 5 VDC

      Power supply requirements

      USB 3.0 bus powered

      Operating temperature

      0°C ~ +45°C

      Storage temperature

      -20°C ~ +70°C

      Operating humidity

      10% ~ 80%

      Mechanical Dimensions (W×H×L)

      C-mount: 29 mm × 29 mm × 20.2 mm

      Weight

      18 g ~ 32 g

      Certifications & Standards

      CE，rohs，USB3 Vision，genicam

      ">
