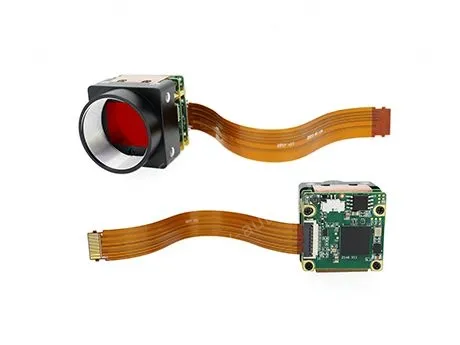

VEN-230-168U3M-FPC is a Venus series (VEN-U3) all-in-one industrial digital camera independently developed by Daheng Imaging, which is compact and robust, using Sony IMX174 CMOS sensor with global exposure, and transmits data through USB3.0 (horizontal FPC), which has the characteristics of excellent performance, easy installation and use, and is a high-reliability and cost-effective industrial digital camera product.
FPC flexible cable optional: 10cm/20cm/50cm
Gamma, Binning, pixel sampling, black level, and digital shift functions are supported
The camera supports sharpening and noise reduction
The sequence control function supports the configuration of multiple sets of function parameters
Lookup table, parameter group, counter, and timer functions
Remove the parameter range limit, and expand the range value of parameters such as exposure and gain
A 16KB user data area is provided to save algorithm coefficients, parameter configurations, etc
Model | VEN-230-168U3M-FPC |
Brand | Daheng image |
Resolution | 1920×1200 |
Frame rate (fps) | 168 |
Sensor manufacturers | Sony |
Sensor | 1/1.2" IMX174 Global shutter CMOS |
Cell size | 5.86μm |
Pixel depth | 8 bit，10 bit |
Data interface | USB3.0 (Horizontal FPC) |
Lens mount | C |
Spectrum | Black and white |
Image data format | Mono 8，Mono 10 |
Signal-to-noise ratio | 45.32 db |
Exposure time | Standard: 20μs ~ 1s |
Gain | 0db ~ 24db |
Binning | 1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4 |
Pixel sampling | FPGA：1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4 |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 bidirectional GPIO |
Rated power | < 2.7 W @ 5 VDC |
Power supply requirements | USB 3.0 bus powered |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 29 mm × 29 mm × 25.1±1 mm (without C-mount length) |
Weight | 36 g |
Certifications & Standards | CE，rohs，ICES，USB3 Vision，genicam |
">
