VEN-134-90U3M-D

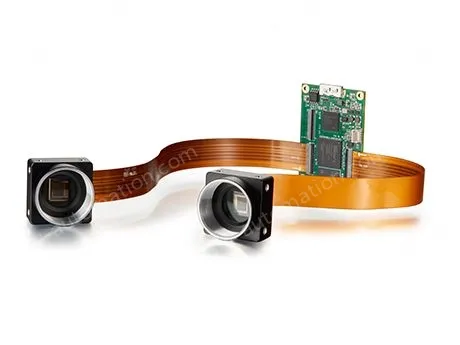

VEN-134-90U3M-D is a Venus series (VEN-U3) split industrial digital camera independently developed by Daheng Imaging, VEN-134-90U3M-D uses two global exposure Onsemi PYTHON 1300 CMOS sensors, through USB3.0 (Micro B) data interface for image data transmission, which is an excellent choice for users who have requirements for space, weight, power consumption and heat generation. The acquisition board of VEN-134-90U3M-D is equipped with three FPC interfaces, which are highly expandable, and the acquisition board can be connected with up to two imaging boards on the same side or left and right sides through the FPC flexible cable, and the FPC flexible cable can reach up to 460mm, which can meet the application needs of users for different structural products.

VEN-134-90U3M-D

ROI, gain, exposure
Output Mono8 / Mono10 via USB3.0 data interface
Adjustable URB
Hot-swappable
Support the soft reset function of the device
Three working modes: continuous acquisition/soft trigger acquisition/external trigger acquisition
A pixel clock is used to ensure that the two imaging plates are synchronized

Selection specifications

The specifications of VEN-134-90U3M-D are as follows: Product Name-FPC Length-Mounting Method-Lens Mount, please refer to the following table for details:

For example, VEN-134-90U3M-D-J01J01S01M00 means that the length of the two FPCs of VEN-134-90U3M-D is 460mm, and the FPCs are mounted on both sides with C lens mounts.

Product name	FPC length	FPC mounting method	Lens mount
VEN-134-90U3M-D	J01（460mm）	S00 (Same side mounting) /S01 (both sides mounting)	M00（C-Mount） /M01（CS-Mount） /M05（S-Mount） /M06（No-Mount）
	J02（210mm）
	J03（150mm）

VEN-134-90U3M-D

Model	VEN-134-90U3M-D
Brand	Daheng image
Resolution	1280×1024×2
Frame rate (fps)	90
Sensor manufacturers	On Semi
Sensor	1/2" PYTHON1300 Global shutter CMOS
Cell size	4.8μm
Pixel depth	8 bit，10 bit
Data interface	USB3.0
Lens mount	No-mount，C，S，CS
Spectrum	Black and white
Image data format	Mono8，Mono10
Signal-to-noise ratio	41 db
Exposure time	Standard: 5μs ~ 1s
Gain	0db ~ 16db
I/O interface	2 bidirectional gpios
Rated power	< 3.5 W @ 5 VDC
Power supply requirements	USB 3.0 bus powered
Operating temperature	0°C ~ +45°C
Storage temperature	-20°C ~ +70°C
Operating humidity	10% ~ 80%
Mechanical Dimensions (W×H×L)	Acquisition plate: 40 mm × 54 mm; Imaging plate: 25.4 mm × 25.4 mm
Weight	25 g ~ 50 g
Certifications & Standards	CE，rohs，USB3 Vision，genicam
