FPC flexible cable optional: 10cm/20cm/50cm
Gamma, Binning, pixel sampling, black level, and digital shift functions are supported
Sharpening and noise reduction are supported
The sequence control function supports the configuration of multiple sets of function parameters
Lookup table, parameter group, counter, and timer functions
Global Reset Release (GRR) exposure mode is supported, which can effectively avoid ghosting
Remove the parameter range limit, and expand the range value of parameters such as exposure and gain
A 16KB user data area is provided to save algorithm coefficients, parameter configurations, etc

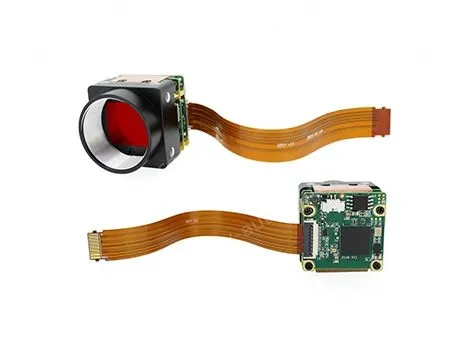

Model | VEN-1220-32U3M-FPC |
Brand | Daheng image |
Resolution | 4024×3036 |
Frame rate (fps) | 32.3 |
Sensor manufacturers | Sony |
Sensor | 1/1.7" IMX226 Rolling shutter CMOS |
Cell size | 1.85μm |
Pixel depth | 8 bit，12 bit |
Data interface | USB3.0 (Horizontal FPC) |
Lens mount | C，S |
Spectrum | Black and white |
Image data format | Mono8，Mono12 |
Signal-to-noise ratio | 40.77 db |
Exposure time | Standard: 10μs ~ 1s |
Gain | 0db ~ 24db |
Binning | 1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4 |
Pixel sampling | FPGA：1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4 |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 bidirectional GPIO |
Rated power | < 2.7 W @ 5 VDC |
Power supply requirements | USB 3.0 bus powered |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 29 mm × 29 mm × 25.1±1 mm (without C-mount length) |
Weight | 36 g ~ 38 g |
Certifications & Standards | CE，rohs，ICES，USB3 Vision，genicam |
">
