FPC flexible cable optional: 10cm/20cm
Burst Mode
Two exposure time modes: Standard Exposure Mode / Minimal Exposure Mode
Binning, pixel sampling, gamma, black level, digital shift are supported
Sharpening and noise reduction are supported
The sequence control function supports the configuration of multiple sets of function parameters
Lookup table, parameter group, counter, and timer functions
Remove the parameter range limit, and you can expand the range values of parameters such as exposure, gain, white balance, etc
Provide user data area: 16KB is used to store algorithm coefficients, parameter configurations, etc., and 512KB is used to store large-capacity data and files

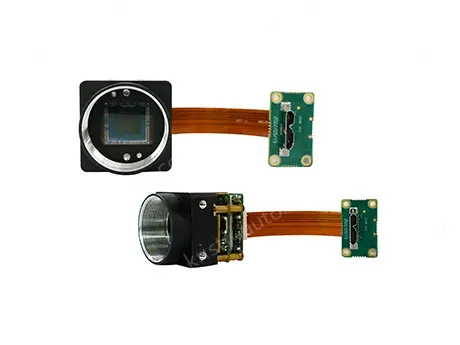

Model | VE2S-501-79U3M-S |
Brand | Daheng image |
Resolution | 2448×2048 |
Frame rate (fps) | 78.9 |
Sensor manufacturers | Sony |
Sensor | 2/3" Sony Global shutter CMOS |
Cell size | 3.45μm |
Pixel depth | 8 bit，12 bit |
Data interface | USB3.0 (Vertical FPC) |
Lens mount | C |
Spectrum | Black and white |
Image data format | Mono8，Mono12 |
Signal-to-noise ratio | 40.62 db |
Exposure time | Minimum: 1μs ~ 100μs; Standard: 20μs ~ 1s |
Gain | 0db ~ 24db |
Binning | 1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4 |
Pixel sampling | FPGA：1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4；Sensor：1×1，2×2 |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 optodecoupled input, 1 optodecoupled output, 2 bidirectional gpios |
Rated power | < 2.7 W @ 5 VDC |
Power supply requirements | 5 VDC |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 31 mm × 29 mm × 39.3 mm (without C-mount length) |
Weight | 30 g |
Certifications & Standards | CE，rohs，USB3 Vision，genicam |
">
