FPC flexible cable optional: 10cm/20cm
Support ROI, gain, auto gain, exposure, auto exposure
Two exposure time modes: Standard Exposure Mode / Minimal Exposure Mode
Supports pixel sampling, gamma, binning, horizontal/vertical mirroring, digital shift, and black level functions
Support sharpening and noise reduction
Support sequence function, can preset N groups of different parameters
Lookup tables, parameter groups, counters, and timer functions are supported
The parameter range limit can be removed, and the range value of parameters such as exposure and gain can be expanded
16KB is used to save algorithm coefficients, parameter configurations, etc
512KB is used to store large data and files

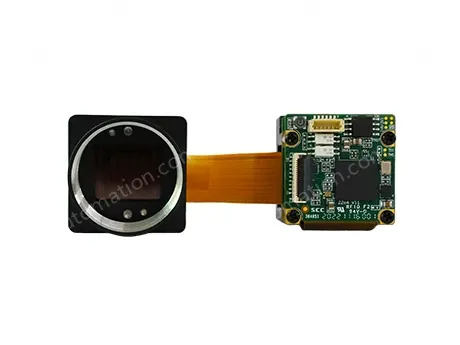

Model | VE2S-301-125U3M-S J150 |
Brand | Daheng image |
Resolution | 2048×1536 |
Frame rate (fps) | 125 |
Sensor manufacturers | Sony |
Sensor | 1/1.8" IMX252 Global shutter CMOS |
Cell size | 3.45μm |
Pixel depth | 8 bit，10 bit，12 bit |
Data interface | USB3.0 (Vertical FPC) |
Lens mount | C |
Spectrum | Black and white |
Image data format | Mono8，Mono10，Mono12 |
Signal-to-noise ratio | 40.8 db |
Exposure time | 20μs ~ 1s |
Gain | 0db ~ 24db |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 optodecoupled input, 1 optodecoupled output, 2 bidirectional gpios, 1 UART serial port (multiplexed GPIO) |
Rated power | < 2.8 W @ 5 VDC |
Power supply requirements | 5 VDC |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 31 mm × 29 mm × 39.3 mm (without C-mount length) |
Weight | 30 g |
Certifications & Standards | CE，rohs，USB3 Vision，genicam |
">
