FPC flexible cable optional: 10cm/20cm
Support ROI, gain, auto gain, exposure, auto exposure
Two exposure time modes: Standard Exposure Mode / Minimal Exposure Mode
Supports Gamma, Binning, Pixel Sampling, Black Level, Auto Black Level, Digital Shift
Sharpening and noise reduction are supported
Support sequence function, can preset N groups of different parameters
Lookup table, parameter group, counter, and timer functions
Remove the parameter range limit, and expand the range value of parameters such as exposure and gain
16KB is used to save algorithm coefficients, parameter configurations, etc
512KB is used to store large data and files

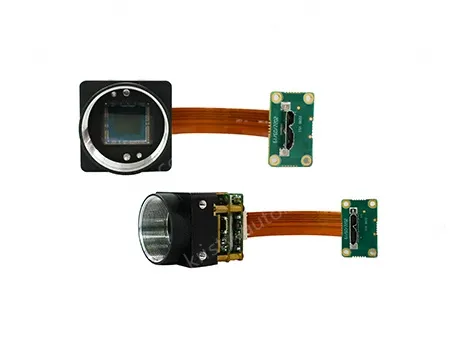

Model | VE2S-301-125U3M-S |
Brand | Daheng image |
Resolution | 2048×1536 |
Frame rate (fps) | 125 |
Sensor manufacturers | Sony |
Sensor | 1/1.8" IMX252 Global shutter CMOS |
Cell size | 3.45μm |
Pixel depth | 8 bit,10 bit,12 bit |
Data interface | USB3.0 (Vertical FPC) |
Lens mount | C |
Spectrum | Black and white |
Image data format | Mono8,Mono10,Mono12 |
Signal-to-noise ratio | 40.8 db |
Exposure time | 20μs ~ 1s |
Gain | 0db ~ 24db |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 optodecoupled input, 1 optodecoupled output, 2 bidirectional gpios, 1 UART serial port (multiplexed GPIO) |
Rated power | < 2.8 W @ 5 VDC |
Power supply requirements | 5 VDC |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 31 mm × 29 mm × 39.3 mm (without C-mount length) |
Weight | 30 g |
Certifications & Standards | CE,rohs,USB3 Vision,genicam |
">
