FPC flexible cable optional: 10cm/20cm
Support ROI, gain, auto gain, exposure, auto exposure
Binning, pixel sampling, gamma, black level, digital shift are supported
Static dead pixel correction
Sharpening and noise reduction
Lookup table, parameter group, counter, and timer functions
Remove the parameter range restriction to expand the range value of the parameter
Provides a 512KB user data area for large data and files

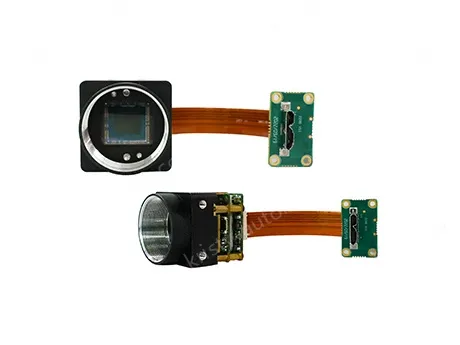

Model | VE2S-240-159U3M-S |
Brand | Daheng image |
Resolution | 2048×1200 |
Frame rate (fps) | 159.4 |
Sensor manufacturers | Gpixel |
Sensor | 1/1.7" GMAX4002 Global shutter CMOS |
Cell size | 4μm |
Pixel depth | 8 bit，10 bit，12 bit |
Data interface | USB3.0 (Vertical FPC) |
Lens mount | C |
Spectrum | Black and white |
Image data format | Mono8，Mono10，Mono12 |
Signal-to-noise ratio | 39.98 db |
Exposure time | 7μs ~ 1s |
Gain | 0db ~ 16db |
Binning | 1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4 |
Pixel sampling | Horizontal fpgas, Vertical Sensors: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 optodecoupled input, 1 optodecoupled output, 2 bidirectional gpios, 1 UART serial port (multiplexed GPIO) |
Rated power | < 2.7 W @ 5 VDC |
Power supply requirements | 5 VDC |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 31 mm × 29 mm × 39.3 mm (without C-mount length) |
Weight | 30 g |
Certifications & Standards | CE，rohs，USB3 Vision，genicam |
">
