Timestamps, horizontal binning, pixel sampling, mirroring
The sequence control function supports the configuration of multiple sets of function parameters
Trigger Type: Start of Frame / Start of High-Speed Burst of Frame
Gain, Auto Gain, Gamma, Black Level, Digital Shift
It supports static dead pixel correction, flat field correction, sharpening, and noise reduction
Lookup table, parameter group, counter, and timer functions
Remove the parameter range restriction to expand the range value of the parameter
Provide user data area to save algorithm coefficients, parameter configurations, etc

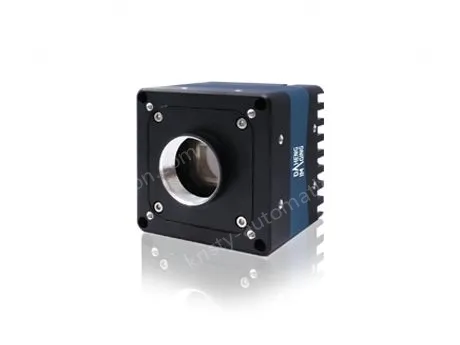

Model | MARS-900-120GTM |
Brand | Daheng image |
Resolution | 4192×2160 |
Frame rate (fps) | 120.36 |
Sensor manufacturers | Gpixel |
Sensor | 2/3" GMAX2509 Global Shutter CMOS |
Cell size | 2.5μm |
Pixel depth | 8 bit，12 bit |
Data interface | 10gige |
Lens mount | C |
Spectrum | Black and white |
Image data format | Mono8，Mono12 |
Signal-to-noise ratio | 36.44 db |
Exposure time | 4μs ~ 1s |
Gain | 0db ~ 16db |
Binning | 1×1,2×1 (no vertical binning) |
Pixel sampling | Horizontal FPGA, Vertical Sensor: 1×1,1×2,2× 1,2×2 |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 optodecoupled input, 1 optodecoupled output, 1 bidirectional GPIO |
Rated power | < 12.7 W @ 24 VDC |
Power supply requirements | 12 ~ 24 VDC |
Operating temperature | 0°C ~ +50°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 60 mm × 60 mm × 54 mm |
Weight | 340 g |
Certifications & Standards | CE，rohs，gige Vision，genicam |
">
