Brightfield correction, darkfield correction, flat field correction, hot pixel correction, static dead pixel correction
The sequence control function supports the parameter configuration of exposure, gain, and flat-field correction functions in up to 16 groups
Gamma, sharpening function is supported
Auto black level, look-up table, parameter group, counter and timer functions
Support Daheng image and third-party image grabber

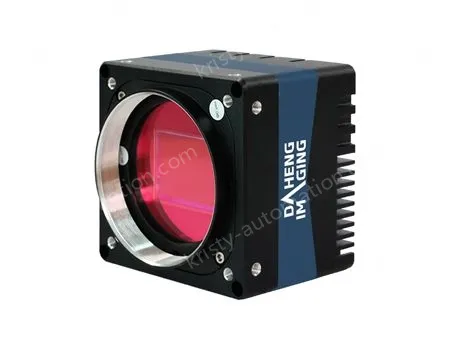

Model | MARS-6503-71X2M-NF |
Brand | Daheng image |
Resolution | 9344×7000 |
Frame rate (fps) | 71.1 |
Sensor manufacturers | Gpixel |
Sensor | 29.9mm × 22.4mm GMAX3265 65MP Global Shutter CMOS |
Cell size | 3.2μm |
Pixel depth | 8 bit，10 bit |
Data interface | Coaxpress2.0 |
Lens mount | M58 |
Spectrum | Black and white |
Image data format | Mono8，Mono10 |
Signal-to-noise ratio | 40.4 db |
Exposure time | 13μs ~ 1s |
Gain | 0db ~ 16db |
Binning | 1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4 |
Pixel sampling | Horizontal fpgas, Vertical Sensors: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 opto-decoupled input, 1 opto-decoupled output, 1 bidirectional GPIO, 1 RS232 |
Rated power | Typical: 16 W@ 24V, Ambient 25°C, Fan (ON); 14 W@ 24V, Ambient 25°C, Fan (OFF) |
Power supply requirements | Auxiliary DC 24V power supply or pocxp power supply |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 74mm × 74mm × 80.5mm |
Heat dissipation | Fan |
Weight | 573 g |
Certifications & Standards | CE，coaxpress2.0，gentl |
