Features

• Available in 10-point, 16-point or 32-point digital I/O versions
• Analog versions available with 20 digital I/O points, 4 analog inputs (two voltage and two current) and 1 analog output (configurable for either voltage or current)
• Provides a compact form factor, with footprints as small as 120 mm x 80 mm x 40 mm (4.72 in. x 3.15 in. x 1.57 in.)
• Offers fast processing with typical throughput time of 1.5 ms for a 500-instruction program
• Preconfigured 1 KB program and data memory to ease configuration
• Includes built-in EEPROM memory; no need for battery back-up or separate memory module
• Provides peer-to-peer messaging (up to 32 controllers on a DH-485 network) through a 1761-NET-AIC communication interface
• Communicates via DeviceNet™ and EtherNet/IP™ through 1761-NET-DNI and 1761-NET-ENI communication interfaces
• Includes a built-in high-speed counter (only on controllers with 24V DC inputs)
• Lets you customize input response time and noise rejection using adjustable DC input filters
• Supports simple connectivity through RS-232 communication channel to a PC for program upload, download and monitoring

Products

• 1766-L32BXBA 32 PT ML1400 DC IO/RELAY OUT W ANALOG IO

Description:

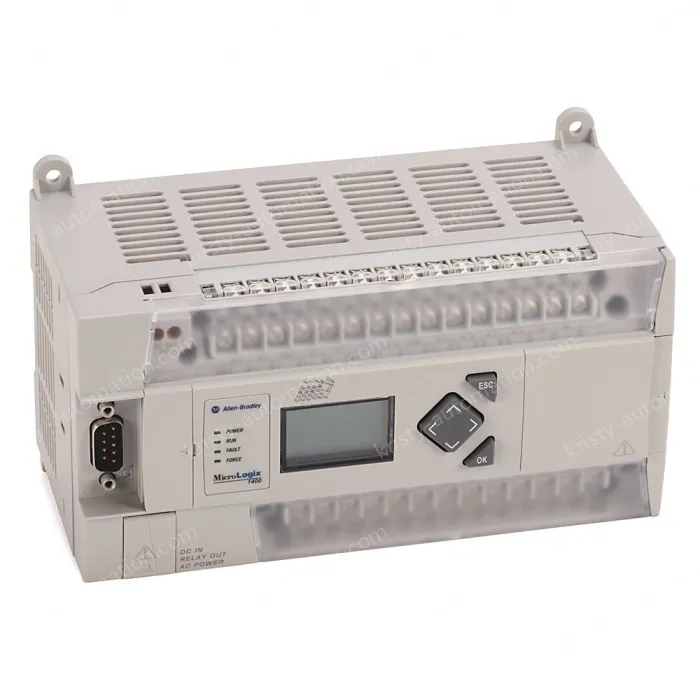

The Allen-Bradley 1766-L32BXBA is a MicroLogix 1400 Controller. This controller is powered by an external supply voltage of 24VDC with built-in Twelve (12) Fast 24VDC, Eight (8) Normal 24VDC, Two (2) Voltage inputs, Six (6) Relay, Three (3) Fast DC, Three (3) Normal DC outputs and Two (2) Voltage output channels.

Depth : 87mm

Height : 90mm

Width : 180mm

Applications

Typical applications for the MicroLogix™ programmable controllers include:

• Material Handling
• Packaging Applications
• General Industrial Machinery
• Printing
• Food and Beverage
• Pharmaceutical
• Water Wastewater / SCADA
• Clutch/Brake control
• Position Control - Pick-and-place / Conveyor
