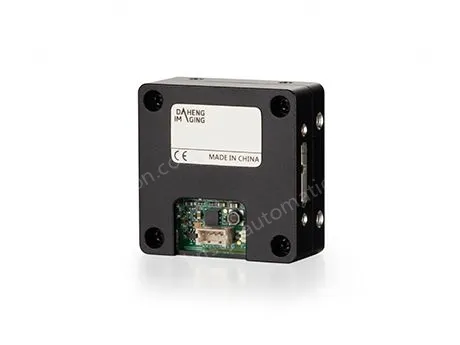

The Ven-U3 all-in-one board-level cameras provide an excellent choice for users who need a very small space, low weight, low power consumption, and low heat generation. The VEN-830-22U3C uses the line-exposed Sony IMX334 CMOS sensor to transmit image data through the USB3.0 (Micro B) data interface.
Gain, Auto Gain, Exposure Time, Auto Exposure
Bayer RG8 / Bayer RG10 output via USB3.0 data interface
It supports the ambient light preset function, and provides an Off mode and four light modes that specify common color temperatures
Support white balance, auto white balance
Parameter groups are supported
Horizontal and vertical mirroring functions are supported
Provide 16K user data area, retain algorithm coefficients, parameter configuration, etc
Model | VEN-830-22U3C |
Brand | Daheng image |
Resolution | 3840×2160 |
Frame rate (fps) | 22 |
Sensor manufacturers | Sony |
Sensor | 1/1.8" IMX334 Rolling shutter CMOS |
Cell size | 2.0μm |
Pixel depth | 8 bit，10 bit |
Data interface | USB3.0 |
Lens mount | No-mount，C，S，CS |
Spectrum | Colored |
Image data format | Bayer RG8，Bayer RG10 |
Signal-to-noise ratio | 39.41 db |
Exposure time | Standard: 20μs ~ 1s, actual step size: 1 line cycle |
Gain | 0db ~ 24db； The default value is 0db and the step size is 0.1db |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 optodecoupled isolated input, 1 bidirectional GPIO |
Rated power | < 2.7 W @ 5 VDC |
Power supply requirements | USB 3.0 bus powered |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 35 mm × 35 mm × 15.8 mm (without lens mount length) |
Weight | 7 g ~ 32 g |
Certifications & Standards | CE，rohs，USB3 Vision，genicam |
">
