Gain, Auto Gain, Exposure Time, Auto Exposure
Bayer GB8 / Bayer GB10 output via USB3.0 data interface
It supports the ambient light preset function, and provides an Off mode and four light modes that specify common color temperatures
Support white balance, auto white balance
Parameter groups are supported
Horizontal and vertical mirroring functions are supported
Provide 16K user data area, retain algorithm coefficients, parameter configuration, etc

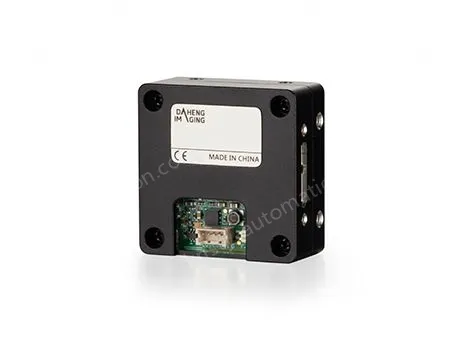

Model | VEN-505-36U3C |
Brand | Daheng image |
Resolution | 2592×1944 |
Frame rate (fps) | 36.9 |
Sensor manufacturers | Sony |
Sensor | 1/2.8" IMX335 Rolling shutter CMOS |
Cell size | 2.0μm |
Pixel depth | 8 bit，10 bit |
Data interface | USB3.0 |
Lens mount | No-mount，C，S，CS |
Spectrum | Colored |
Image data format | Bayer RG8，Bayer RG10 |
Signal-to-noise ratio | 39.29 db |
Exposure time | Standard: 20μs ~ 1s |
Gain | 0db ~ 24db |
Mirror flip | Horizontal mirroring, vertical mirroring |
I/O interface | 1 optocoupled isolated input, 1 bidirectional GPIO |
Rated power | < 2.7 W @ 5 VDC |
Power supply requirements | USB 3.0 bus powered |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 35 mm × 35 mm × 15.8 mm (without lens mount length) |
Weight | 7 g ~ 32 g |
Certifications & Standards | CE，rohs，USB3 Vision，genicam |
">
