Custom ROI is supported, and the frame rate can be increased by reducing the resolution
Programmable settings for gain, exposure time, and white balance
Auto white balance function is supported
Three working modes: continuous acquisition/soft trigger acquisition/external trigger acquisition
Outputable image data format: Bayer RG8 / Bayer RG12
Exposure completion event notification function is supported
It can output a flash sync signal to achieve precise synchronization of exposure and fill light
You can adjust the packet length, packet interval, and reserved bandwidth to optimize the simultaneous collection and transmission of multiple machines
Lookup tables and parameter groups are supported
Rugged all-metal housing and cable locking
It supports up to 100 meters of transmission over a single cable
Supports GenICam™ and GigE Vision®, and can directly connect to third-party software such as HALCON, MERLIC, LabVIEW, etc
CE, RoHS and FCC compliant
The driver is optimized for 32bit / 64bit Windows and supports operating systems and architectures such as Linux, ARMv7 and ARMv8
Free SDK and abundant source code for secondary development instances

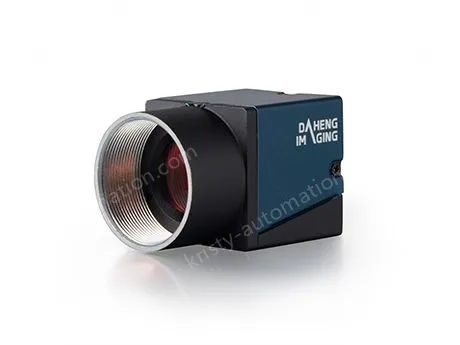

Model | MER-201-25GC |
Brand | Daheng image |
Resolution | 1628×1236 |
Frame rate (fps) | 25.08 |
Sensor manufacturers | Sharp |
Sensor | 1/1.8" RJ31N Global shutter CCD |
Cell size | 4.4μm |
Pixel depth | 8 bit，12 bit |
Data interface | Gige |
Lens mount | C，CS |
Spectrum | Colored |
Image data format | Bayer RG8，Bayer RG12 |
Rated power | < 3 W @ 12 VDC |
Power supply requirements | 12 VDC |
Operating temperature | 0°C ~ +45°C |
Storage temperature | -20°C ~ +70°C |
Operating humidity | 10% ~ 80% |
Mechanical Dimensions (W×H×L) | 29 mm × 29 mm × 29 mm (without C-mount length) |
Weight | 60 g |
Certifications & Standards | CE，rohs，gige Vision，genicam |
">
