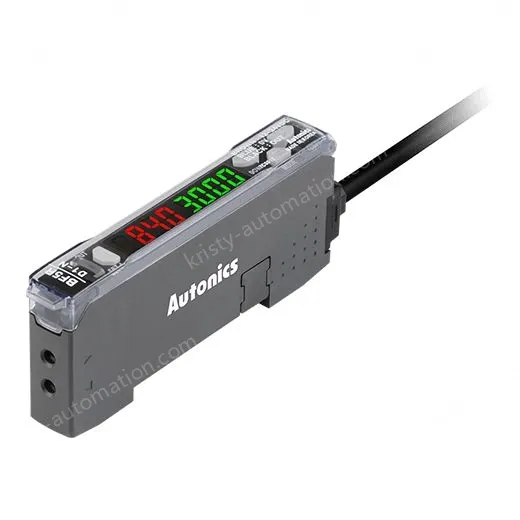

      BF5G-D1-N
      The BF5 series fiber optic amplifiers are available in single and dual display models. The units feature 5 different response speed settings, for flexible and reliable detection of fast moving targets or small objects. With integrated mutual interference prevention, reliable detection is possible with multiple units (up to 8 units) with connection using side connectors. Other features include saturation prevention function, inverted display, and simple sensitivity adjustment settings. Red, green, and blue LED light source models are available for diverse applications.
      BF5G-D1-N
      Type Dual display
      Display method 4-digit 7-segment LED
      Light source Green LED(530nm)
      Response time 50㎲, 150㎲, 500㎲, 4ms, 10ms
      Power supply 12-24VDC ±10%(ripple P-P: max. 10%)
      Current consumption Max. 50mA
      Operation mode Light ON/Dark ON(set by parameter)
      Control output NPN open collector
      Timer function OFF, OFF Delay, ON Delay, One-shot(1 to 5000ms)
      Sensitivity adjustment Manual Teaching(auto-tuning, 1-point, 2-point, positioning)
      ※ In multiple connection, batch teaching available
      Communication I2C(max. 8 units)
      Environment_Ambient illumination Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
      Environment_Ambient temperature -10 to 50℃, storage: -20 to 70℃
      Protection structure IP40
      Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
      Mutual interference prevention Max. 8 unit sets(automatically set regardless of response time)
      Initializing Initializing as factory mode
      Energy saving Normal/Energy saving 1/Energy saving 2
      Material Case: Polybutylene terephthalate, Cover: Polycarbonate
      Accessories Connector type wire(Ø4mm, 3-wire, 2m)(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm), Side connector
      Weight Approx. 138g(approx. 20g)
