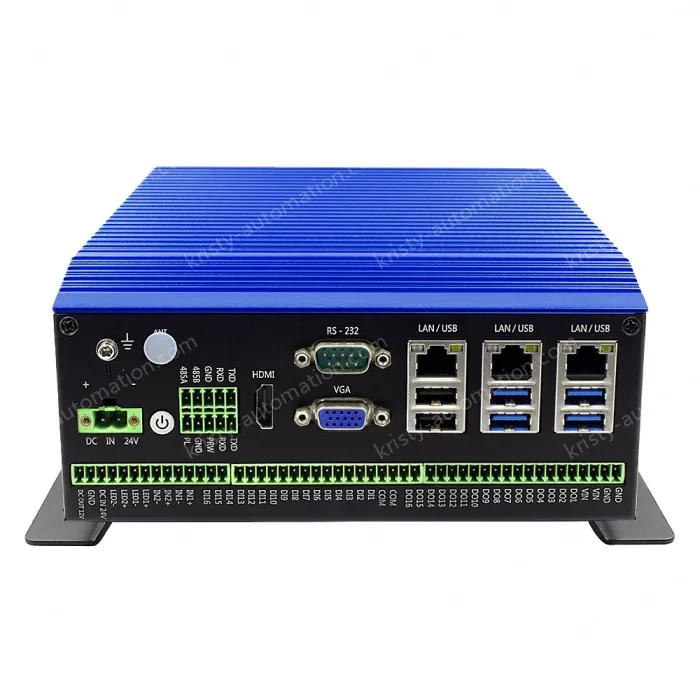

| PC M-9068-IO Specifications | ||||||||
| System Hardware | Processor | Model | Kernel | Frequency | Highest turbo Frequency | Maximum Memory | Cache | Power Consumption |
| I9-9900 | 8C16T | 3.1GHZ | 5.0GHZ | 128GB | 16MB | 65W | ||
| I5-9600 | 6C6T | 3.1GHZ | 4.6GHZ | 128GB | 9MB | 65W | ||
| I5-8500 | 6C6T | 3.0GHZ | 4.1GHZ | 128GB | 9MB | 65W | ||
| I7-9700 | 8C8T | 3.0GHZ | 4.7GHZ | 128GB | 12MB | 65W | ||
| I3-9100 | 4C4T | 3.6GHZ | 4.2GHZ | 64GB | 6MB | 65W | ||
| I5-7500 | 4C4T | 3.4GHZ | 3.8GHZ | 64GB | 6MB | 65W | ||
| I7-6700 | 4C8T | 3.4GHZ | 4.0GHZ | 64GB | 8MB | 65W | ||
| I5-6500 | 4C4T | 3.2GHZ | 3.6GHZ | 64GB | 6MB | 65W | ||
| I5-6400 | 4C4T | 2.7GHZ | 3.3GHZ | 64GB | 6MB | 65W | ||
| I3-6100 | 2C4T | 3.7GHZ | 3.7GHZ | 64GB | 3MB | 51W | ||
| Memory | 260-pin DDR4-2133-3200 MHz SO-DIMM single-channel memory, maximum memory capacity 32GB | |||||||
| Operating System | Win10 64-bit 21H2 and above with Ubuntu 20.04 | |||||||
| South Bridge | Q150 | |||||||
| Graphics | Display INTEL HD Graphics 630/650 | |||||||
| BIOS | AMI BIOS | |||||||
| Watch Dogs | Support 256 levels (0~255), programmable | |||||||
| Power Supply | Power supply | DC IN 24V, standard product comes with 24V/4A power adapter; | ||||||
| 8th and 9th Gen CPUs/with IO/with Graphics with 24V/6.25A power adapters | ||||||||
| Startup mode | Power-on auto-start/button triggers power-on (power-on auto-start by default, and the trigger power-on mode can be set by BIOS or hardware). | |||||||
| Power switch | 1*Whole machine switch, with light | |||||||
| Panel Interface | Display mode | 1*VGA: Maximum resolution up to 4096*2304@60 Hz | ||||||
| 1*HDMI: The maximum resolution is up to 4096*2304@60Hz | ||||||||
| COM1/2 | Default 1*3-wire RS-232, use 1 standard DB-9 seat (can be customized 2*3-wire RS-232, you need to buy our wiring to use) | |||||||
| RS-232 | 2*RS-232, green phoenix terminal | |||||||
| RS-485 | 1*RS-485, green phoenix terminal | |||||||
| PL | 1*Power indicator, green phoenix terminal with indicator (5V). | |||||||
| PWR | 1*Remote switch | |||||||
| WORK | 3*Gigabit Ethernet port, using Intel I225 chip, support Wake-on-LAN, speed: 10/100/1000Mbps | |||||||
| USB | 4*USB3.0, 2*USB2.0 | |||||||
| Built Interface | SATA | 2*SATA interface, support 2.5 inch hard disk (128GB/256GB/500GB/1TB...)Optional), in addition, the 3.5-inch hard disk can be customized. | ||||||
| MSATA | 1*miniPCIe slot, support mSATA (capacity 64/128/256/480/512GB...)Optional). | |||||||
| SW2 | Clock reset, 1 x 1*4PIN 2.54mm pitch pin header | |||||||
| USB | 1*Single-layer heightened USB2.0, can be connected to dongle | |||||||
| 1 x 1*6pin white socket (USB2.0) | ||||||||
| Reliability | Operating temperature | -20°C~60°C (excluding electronic disks). | ||||||
| Storage temperature | -40°C~85°C (excluding electronic disk). | |||||||
| Relative humidity | 5%~90% non-condensing (excluding electronic disks). | |||||||
| Vibration while working | System installation SSD/mSATA: 3 Grms, IEC 60068-2-64 random 5 ~ 500 Hz | |||||||
| Shock at work: | System installation SSD/mSATA: 30 G, IEC 60068-2-27 | |||||||
| Structure | Installation: | Vertical/horizontal | ||||||
| Vertical size | Bracket included：193.13*284.02*82.3mm(L*W*H) | |||||||
| Horizontal size | Bracket included：216.45*240.9*90.21mm(L*W*H) | |||||||
| The weight of the whole machine | Approx. 3.5 kg (without accessories and packaging). | |||||||
| Certification | Relevant certificates | CE,FCC,ROHS | ||||||
| ZJB-9068-IO specifications | ||||||||
| Functions | GPIO | 16*DO, voltage DC 10-30 V, rated current of 500 per channelmA (depending on the voltage at the supply end). | ||||||
| 16*DO, voltage DC 10-30 V, rated current of 500 per channelmA (depending on the voltage at the supply end). | ||||||||
| FALLEN | 2* Light source trigger | |||||||
| DC AND 24V | External power supply interface of the light source | |||||||
| DC OUT 12V | 1*12V output, up to 1A current | |||||||
