Product Overview

This series of CCTV DC power supply boxes is specially designed for various monitoring systems and serves as the core power supply equipment to ensure the stable operation of monitoring devices. The product covers two major voltage series: 12V and 24V, with multi-circuit output capability, combined with natural cooling or fan cooling methods, which can meet different power requirements. It is equipped with multiple protection mechanisms, including overload, overcurrent, overvoltage and short-circuit protection, which can effectively deal with various sudden power conditions and provide safe and reliable power support for monitoring equipment. The product has passed CE certification, and its quality meets international standards, making it suitable for a variety of complex environments.

Application Scenarios

This series of power supply boxes is widely applicable to various monitoring system power supply scenarios, including but not limited to:

· Security monitoring systems in residential quarters and commercial buildings, providing stable power for cameras, video recorders and other equipment;

· Industrial places such as factory workshops and warehouses, adapting to the simultaneous operation of multiple monitoring devices and coping with complex power environments;

· Outdoor scenarios such as roads and transportation hubs, meeting the power supply needs of monitoring equipment under different climatic conditions;

· Public places such as schools and hospitals, ensuring the 24-hour uninterrupted operation of security systems.

Selection Guide

1. Determine the voltage requirement: Select 12V or 24V series products according to the rated voltage of the monitoring equipment;

2. Calculate power and current: Count the total power and current of all equipment that needs power supply, select models with matching electrical specifications (current, power), and it is recommended to reserve more than 20% power margin;

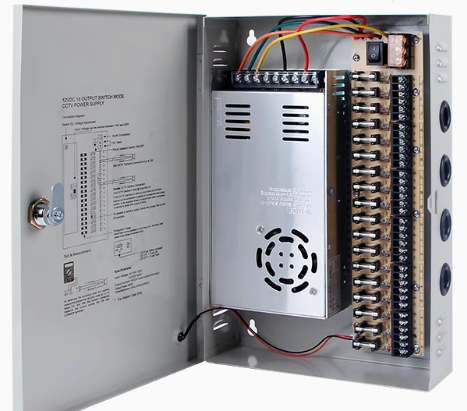

3. Determine the number of circuits: Select models with 4, 9 or 18 circuits according to the number of equipment and grouping requirements;

4. Consider the cooling method: Natural cooling is suitable for environments with good ventilation and low power; Fan cooling is suitable for high-power and high ambient temperature scenarios;

5. Match the installation space: Select products with corresponding box sizes according to the size limitations of the installation location.

Installation Requirements

1. The installation environment must be well-ventilated, away from heat sources, water sources and corrosive gases;

2. The equipment should be fixed on a flat and solid surface to avoid vibration;

3. When wiring, strictly distinguish between input and output terminals, ensure correct polarity and firm connection;

4. A fuse that meets the specifications must be connected to take overload protection measures;

5. The installation process must comply with local electrical safety regulations and be operated by professional electricians;

6. For fan-cooled models, ensure that the fan outlet is not blocked, and clean the fan dust regularly.

Operating Conditions

· Input voltage: 100-240V/AC

· Operating temperature: -10℃~50℃

· Operating humidity: 5%~90% (non-condensing)

· Storage temperature: -20℃~60℃

· Altitude: ≤2000m

· Protection class: IP20 (for indoor use)

Multiple Protections

· Overload protection: When the load is greater than 20% of the rated power, the protection circuit is triggered;

· Overcurrent protection: When the output current is greater than 10% of the rated current, the protection circuit is triggered;

· Overvoltage protection: When the output voltage is greater than 15% of the rated voltage, the power supply is turned off;

· Short-circuit protection: When a short-circuit fault occurs at the output end, the power supply is turned off with no output.

Input voltage: 100-240V/AC

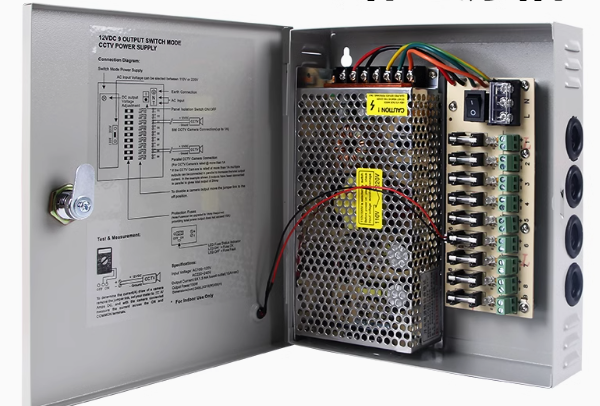

OUTPUT;DC12V

9 Channel, 20A（250W）

Fan cooling
