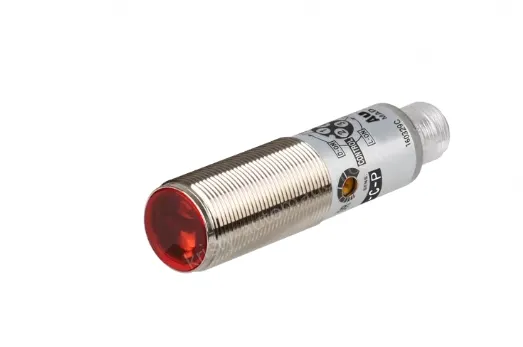

| Sensing type | Retroreflective type(built-in polarizing filter) |
|---|---|
| Sensing distance | 3m |
| Sensing target | Opaque material of min. Ø75mm |
| Light source | Red LED(660nm) |
| Response time | Max. 1ms |
| Power supply | 10-30VDC  ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 30mA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Control output | PNP open collector |
| Connection type | Connector type(M12) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60℃, storage: -30 to 70℃ |
| Protection structure | IP67(IEC standard) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Material | ㆍCase: brass, Ni-plate ㆍLens, Lens cover: polymethyl methacrylate acrylic |
| Weight | Approx. 140g(approx. 30g) |
